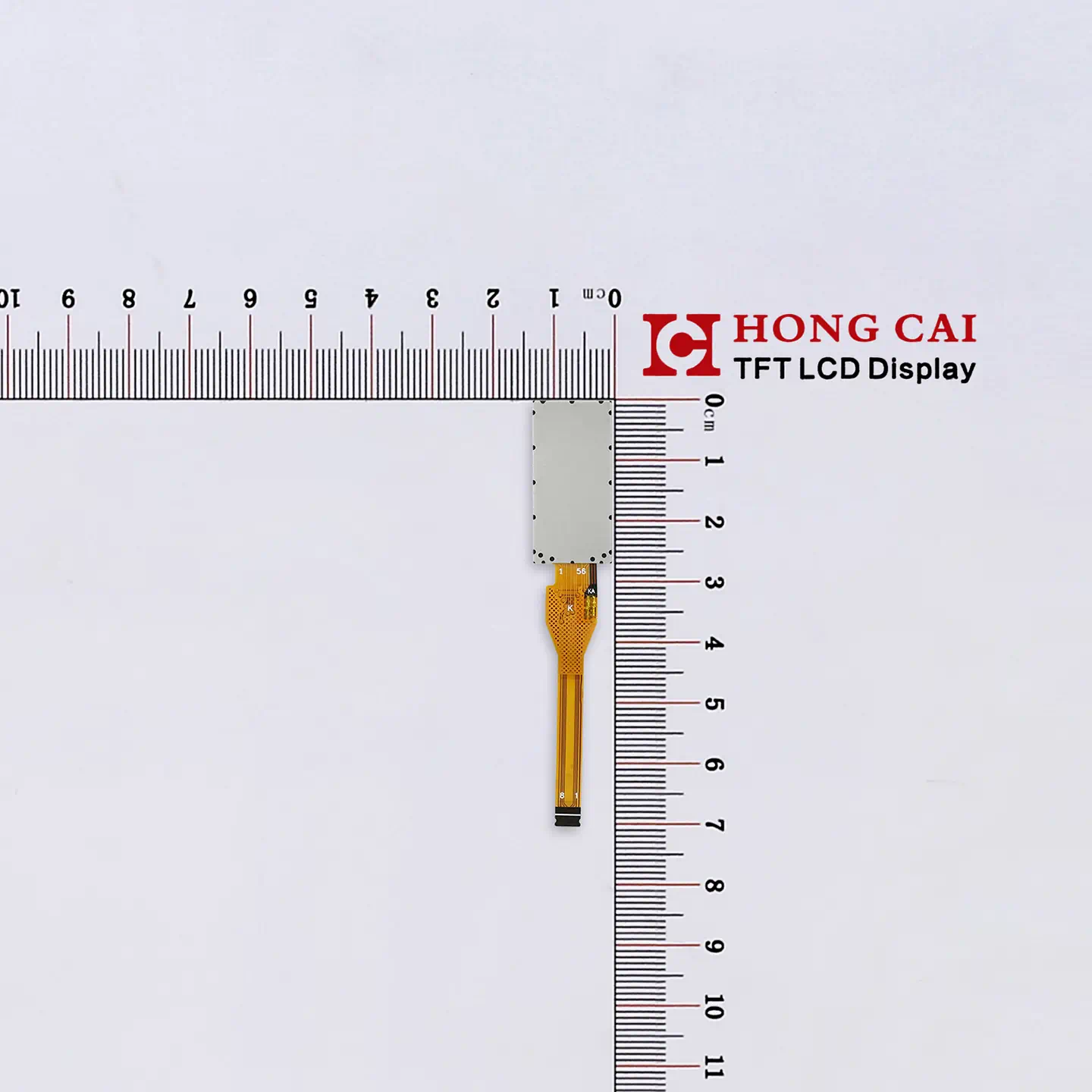

LCD Description
Hongcai 0.96 inch small LCD module is a high-performance small LCD solution designed for compact applications that demand vibrant color and wide viewing angles. With a crisp 80×160 resolution and an advanced IPS panel, this small LCD display ensures that your UI remains clear and readable from any direction.
Engineered for easy integration, it utilizes the industry-standard ST7735 driver IC and a 4-wire SPI interface, significantly reducing the number of pins required—ideal for microcontroller projects and IoT hardware. Whether you are developing smart wearables or medical devices, Hongcai’s factory-direct supply guarantees consistent quality for your small LCD screen mass production needs.
| Item | Contents | Unit |
| Size | 0.96 | inch |
| LCM Dimension | 13.50（W）* 27.95（H） *1.50 (T) | mm |
| LCD Active Area | 10.80* 21.70 | mm |
| Number OfDots | 80 * RGB * 160 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | ALL O’clock | |
| Driver IC | ST7735S | |
| Interface Type | SPI | |
| Operating Temperature | -20℃~ 70℃ | |
| Storage Temperature | -30℃~ 80℃ | |
| Backlight | 220 cd/m² | |
| Touchscreen | TBD |

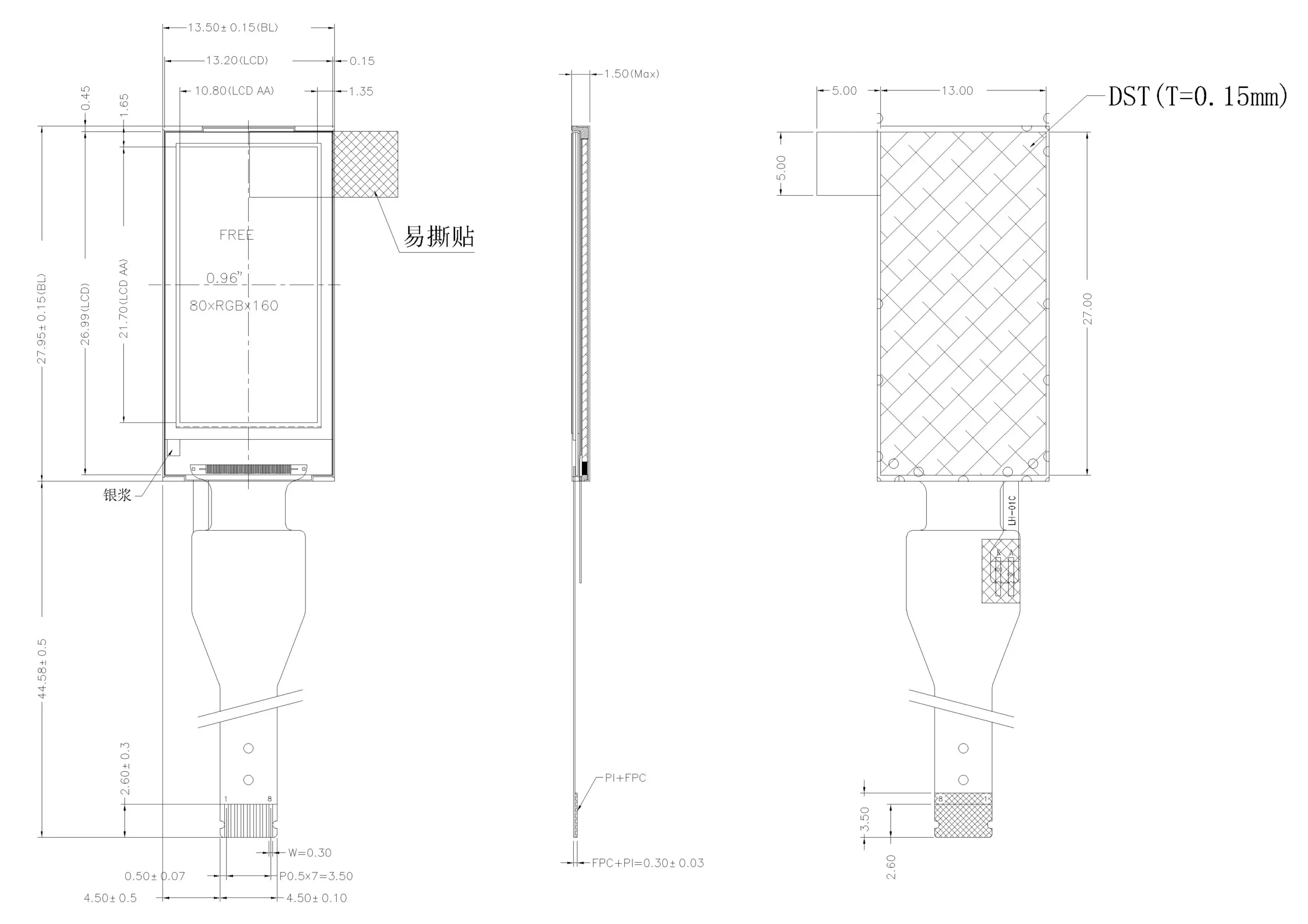

Drawing
SPI Interface
| NO. | Symbol | Description |
| 1 | LEDA | BACKLIGHT ANODE |
| 2 | GND | Ground |
| 3 | RESET | Reset pin |
| 4 | RS | Data/Command register address. |
| 5 | SDA | Serial Data Input |
| 6 | SCL | Serial Clock |
| 7 | VDD | POWER SUPPLY |
| 8 | CS | Chip Select |
