TFT LCD Display Screen
Size
Interface
LCD Category
LCD Resolution
LCD Search
Landscape TFT LCD Display 2.0 inch
480×360 IPS-Like Screen 2.0 inch
- Size : 2.0 inch
- Resolution : 480×360 dots
- View Direction: ALL
- Interface: MCU
- Driver IC: ST7701
- Touch Panel: CTP
- Brightness(cd/m²): 350
- Outline Dimension: 43.95（W）* 38.8（H） * 2.1(T)
IPS TFT LCD Display 2.0 inch
SPI TFT LCD Module with 240×320 Resolution
- Size : 2.0 inch
- Resolution : 240×320 dots
- View Direction: ALL
- Interface: SPI
- Driver IC: ST7789V
- Touch Panel: CTP
- Brightness(cd/m²): 330
- Outline Dimension: 34.6（W）* 47.8（H） * 2.03(T)
RGB IPS LCD Display 2.0 inch
240×320 TFT LCD Module with ST7789V Driver
- Size : 2.0 inch
- Resolution : 240×320 dots
- View Direction: ALL
- Interface: RGB
- Driver IC: ST7789V
- Touch Panel: CTP
- Brightness(cd/m²): 350
- Outline Dimension: 34.70（W）* 47.95（H） * 2.2(T)
Vertical Bar LCD Screen 1.9 inch
170×320 IPS Screen with ST7789 Driver
- Size : 1.9 inch
- Resolution : 170×320dots
- View Direction: ALL
- Interface: MCU
- Driver IC: ST7789
- Touch Panel: TBD
- Brightness(cd/m²): 300
- Outline Dimension: 25.80（H）* 49.72（V） * 1.97(D)
Bar LCD Display 1.9 inch
170×320 IPS Bar Screen with ST7789V Driver & 4-Wire SPI
- Size : 1.9 inch
- Resolution : 170×320dots
- View Direction: ALL
- Interface: 4 SPI
- Driver IC: ST7789
- Touch Panel: TBD
- Brightness(cd/m²): 300
- Outline Dimension: 25.80（H）* 49.72（V） * 1.97(D)
Circular LCD screen module 1.8 inch
360×360 IPS Circular Display
- Size : 1.8 inch
- Resolution : 360×360 dots
- View Direction: ALL
- Interface: QSPI
- Driver IC: ST77916
- Touch Panel: TBD
- Brightness(cd/m²): 380
- Outline Dimension: 47.99（W）* 49.86（H） *1.96(T)
IPS LCD Display Module 1.83 inch
1.83 inch IPS LCD Display Module Specification
- Size : 1.83 inch
- Resolution : 240×284 dots
- View Direction: ALL
- Interface: 4 Line SPI
- Driver IC: NV3030B
- Touch Panel: TBD
- Brightness(cd/m²): 300
- Outline Dimension: 31.72（W）* 39.23（H） *1.9(T)
SPI LCD Display 1.77 inch
128×160 Resolution ST7735S Driver Module
- Size : 1.77 inch
- Resolution : 128×160 dots
- View Direction: 12 O’clock
- Interface: SPI
- Driver IC: ST7735S
- Touch Panel: RTP/CTP
- Brightness(cd/m²): 380
- Outline Dimension: 34.00（W）× 45.83（H）×2.35(T)
MCU Interface LCD Module 1.77 inch
128×160 Resolution & ST7735S Driver IC
- Size : 1.77 inch
- Resolution : 128×160 dots
- View Direction: ALL
- Interface: MCU
- Driver IC: ST7735S
- Touch Panel: TBD
- Brightness(cd/m²): 280
- Outline Dimension: 34.70（W）× 46.7（H）×2.3(T)
IPS LCD Screen 1.77 inch
Full Viewing Angle IPS LCD Display with 128×160
- Size : 1.77 inch
- Resolution : 128×160 dots
- View Direction: ALL
- Interface: SPI/MCU/RGB
- Driver IC: ILI9163V
- Touch Panel: TBD
- Brightness(cd/m²): 320
- Outline Dimension: 34.70（W）× 46.7（H）×2.3(T)

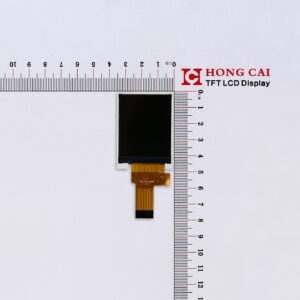

IPS LCD Display 1.77 inch
128×160 Resolution TFT Screen with ST7735S/ILI9163V SPI Interface
- Size : 1.77 inch
- Resolution : 128×160 dots
- View Direction: ALL
- Interface: SPI
- Driver IC: ST7735S or ILI9163V
- Touch Panel: TBD
- Brightness(cd/m²): 380
- Outline Dimension: 34.00（W）× 45.83（H）×2.35(T)
Bar IPS LCD Screen 1.65 inch
Bar LCD 1.65 inch 142×428 SPI Display
- Size : 1.65inch
- Resolution : 142×428 dots
- View Direction: ALL
- Interface: SPI
- Driver IC: NV3007
- Touch Panel: TBD
- Brightness(cd/m²): 300
- Outline Dimension: 6.3(H)*44.96(V)*2.23(D)
Square IPS LCD Screen 1.69 inch
240×280 SPI LCD Module with ST7789 Controller
- Size : 1.69 inch
- Resolution : 240×280 dots
- View Direction: ALL
- Interface: SPI
- Driver IC: ST7789
- Touch Panel: TBD
- Brightness(cd/m²): 300
- Outline Dimension: 30.07（W）* 37.43（H） *1.56(T)
IPS LCD Display Screen 1.5 inch
1.5 inch 240×280 SPI IPS Display Module
- Size : 1.5 inch
- Resolution : 240×280 dots
- View Direction: ALL
- Interface: 4 Line SPI
- Driver IC: NV3030B
- Touch Panel: TBD
- Brightness(cd/m²): 300
- Outline Dimension: 26.77（W）* 33.45（H） *1.56(T)
Square IPS LCD Display 1.54 inch
240×240 SPI TFT LCD Module with ST7789V Driver
- Size : 1.54 inch
- Resolution : 240×240 dots
- View Direction: ALL
- Interface: SPI
- Driver IC: ST7789V
- Touch Panel: TBD
- Brightness(cd/m²): 270
- Outline Dimension: 31.52（W）* 33.72（H） *1.90(T)
Round LCD Display 1.53 inch
Features of 1.53 inch Round LCD Display
- Size : 1.53 inch
- Resolution : 360×360 dots
- View Direction: ALL
- Interface: QSPI
- Driver IC: ST77916
- Touch Panel: TBD
- Brightness(cd/m²): 320
- Outline Dimension: 40.46(W)* 41.82(H)*2.14(T)
HD IPS Display Screen 1.4 Inch
320×320 RGB LCD | ST7365P Driver
- Size : 1.4 inch
- Resolution : 320×320 dots
- View Direction: ALL
- Interface: RGB
- Driver IC: ST7365P
- Touch Panel: TBD
- Brightness(cd/m²): 380
- Outline Dimension: 27.4（W）* 30.3（H） *1.7(T)
Small Bar LCD Screen 1.45 inch
60×160 Resolution SPI TFT LCD with
- Size : 1.45inch
- Resolution : 60×160 dots
- View Direction: ALL
- Interface: SPI
- Driver IC: GC9107
- Touch Panel: TBD
- Brightness(cd/m²): 220
- Outline Dimension: 15.4（W）* 39.69（H） *2.1(T)
Bar LCD Display 1.47 inch
Bar Type TFT IPS Screen
- Size : 1.47inch
- Resolution : 172×320 dots
- View Direction: ALL
- Interface: SPI
- Driver IC: ST7789
- Touch Panel: TBD
- Brightness(cd/m²): 300
- Outline Dimension: 19.39（W）* 36.28（H） *1.46(T)

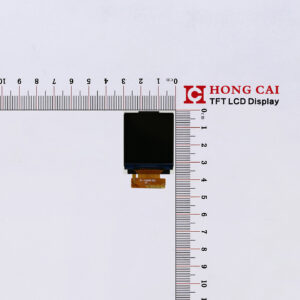

1.44 inch TFT LCD Display
Small Scale SPI Color Screen
- Size : 1.44 inch
- Resolution : 128×128 dots
- View Direction: ALL
- Interface: SPI
- Driver IC: ST7735S
- Touch Panel: TBD
- Brightness(cd/m²): 300
- Outline Dimension: 29.50（W）* 36.5（H） *2.5(T)
