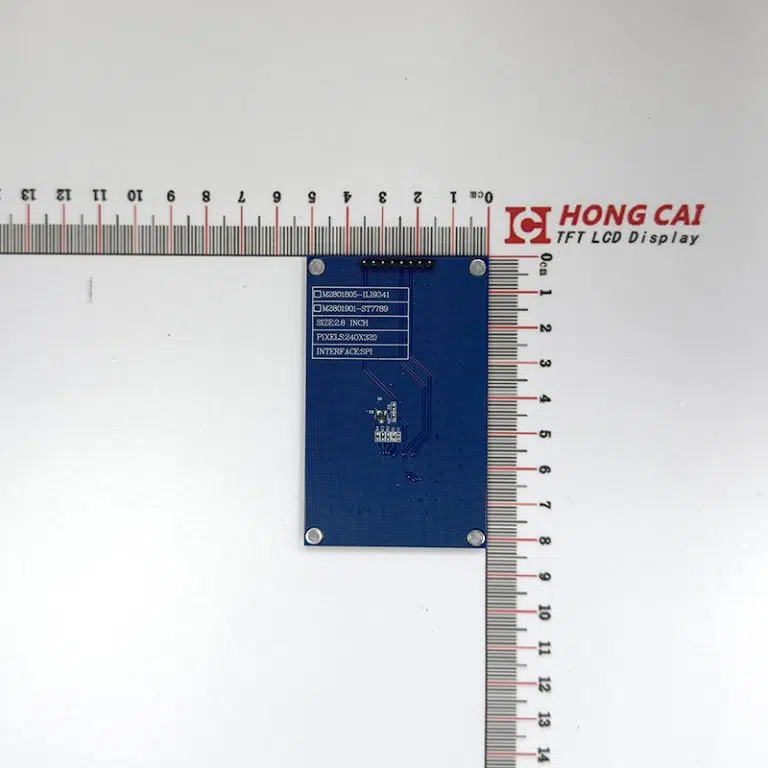

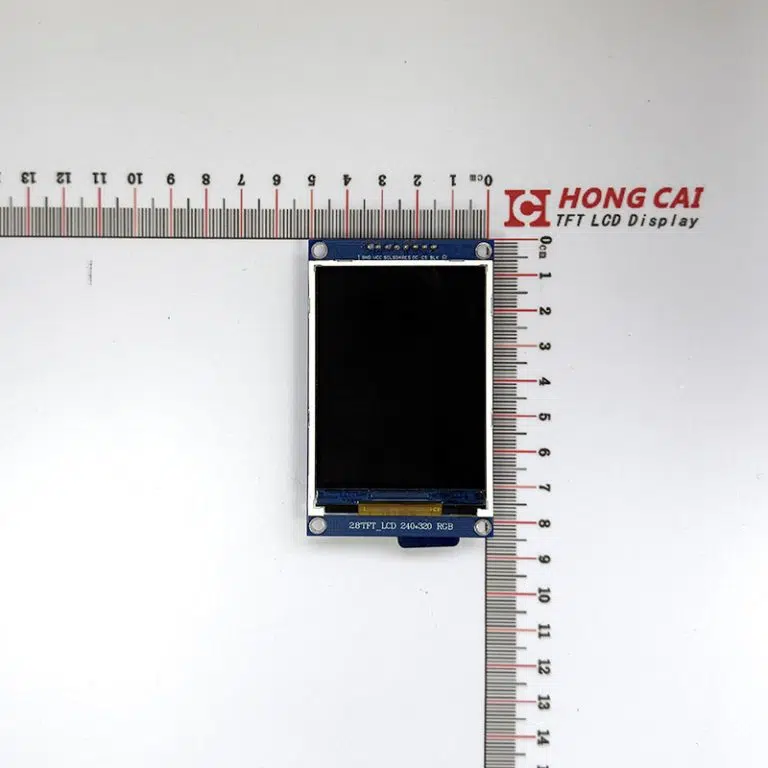

LCD Description
This premium SPI LCD Display 2.8 inch module is engineered to deliver exceptional visual clarity, vibrant colors, and dependable performance for smart hardware, handheld controllers, and embedded systems. Featuring a crisp 240×320 dots resolution and a bright 360 cd/m² backlight, this active-matrix TFT screen ensures clear readability even in well-lit environments.
Operating via a high-speed SPI serial interface, this compact 2.8″ display minimizes required pin counts on your MCU, dramatically simplifying circuit design. Driven by the efficient ST7789V or ILI9341V controller IC and featuring a 12 O’clock viewing direction, it guarantees stable graphics and long-term industrial reliability. Customizable touch panel (TBD) options are available upon request.
| Item | Contents | Unit |
| Size | 2.8 | inch |
| LCM Dimension | 50.00（W）* 69.20（H） * 3.30(T) | mm |
| LCD Active Area | 43.20* 57.60 | mm |
| Number OfDots | 240×320 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | 12 O’clock | |
| Driver IC | ST7789 or ILI9341V | |
| Interface Type | SPI | |
| Operating Temperature | -20℃~ 70℃ | |
| Storage Temperature | -30℃~ 80℃ | |
| Backlight | 360 cd/m² | |
| Touchscreen | TBD |

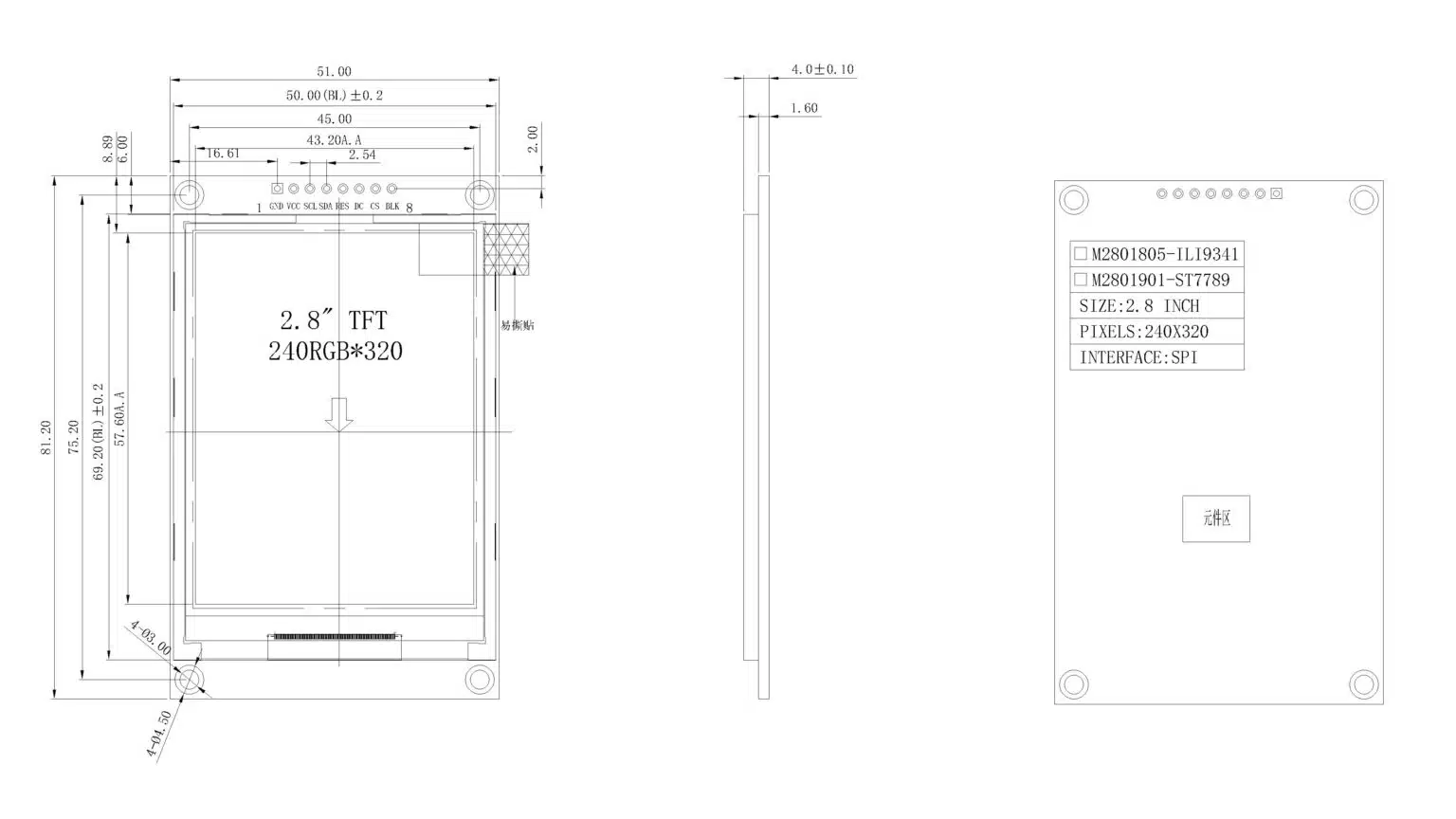

Drawing
SPI Interface
| Pin No. | Symbol | Description |
| 1 | GND | Ground |
| 2 | VCC | System Voltage (2.8V) |
| 3 | SCL | Clock |
| 4 | SDA | Data Input |
| 5 | RES | Reset Signal |
| 6 | RS | Data Output (or Register Select)* |
| 7 | CS | Chip Select |
