LCD Description
As a premium visual solution, this high-performance TFT LCD Display Module 3.2 inch is engineered to deliver reliable performance for smart hardware, medical equipment, and industrial control terminals. Featuring a crisp 240×320 dots resolution, this premium TFT LCD Display Module 3.2 inch ensures vibrant colors and stable data transmission. Driven by the advanced ILI9341V controller, this TFT LCD Display Module 3.2 inch offers seamless compatibility with microcontrollers via its efficient 16-bit MCU interface.
With a bright 400 cd/m² backlight and a standard 12 o’clock viewing angle, this versatile 3.2 inch TFT LCD screen guarantees clear indoor readability for handheld digital devices. Measuring a compact 60.00 x 13.60 x 4.4 mm, it is the perfect choice for developers seeking a durable, high-performance 240×320 TFT LCD display with optional RTP/CTP touch panel integration.
| Item | Contents | Unit |
| Size | 3.2 | inch |
| LCM Dimension | 60.00（W）* 13.60（H） * 4.4(T) | mm |
| LCD Active Area | 48.60 * 64.80 | mm |
| Number Of Dots | 240×320 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | 12 O’clock | |
| Driver IC | ILI9341V | |
| Interface Type | MCU 16BIT | |
| Operating Temperature | -20℃~ 70℃ | |
| Storage Temperature | -30℃~ 80℃ | |
| Backlight Type | 5 LEDs | |
| Brightness | 400 | cd/m² |

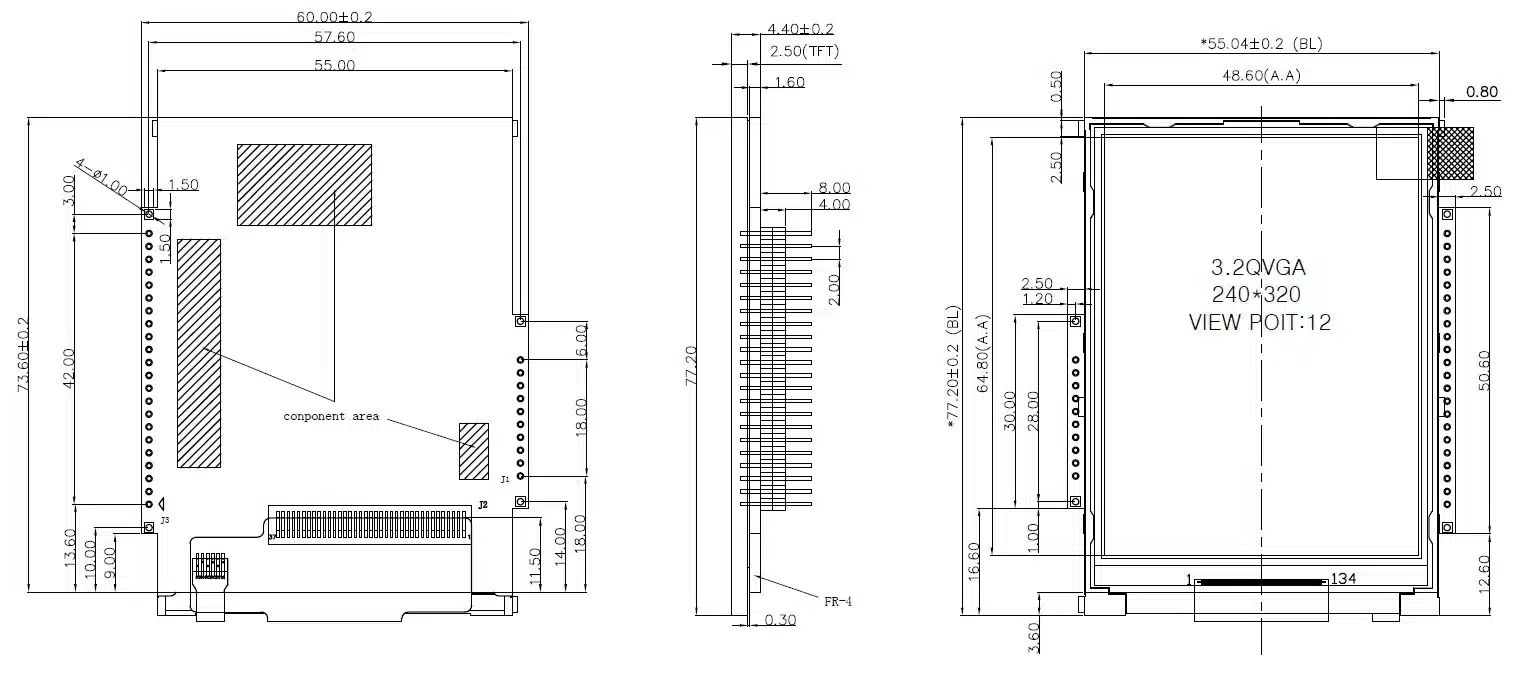

Drawing
MCU 16BIT Interface
| NO. | Symbol | Description |
| 1-3 | BL_VCC | Power Supply for BL |
| 4-6 | VCC | Power Supply |
| 7 | NC | Not Connect |
| 8-10 | GND | Ground |
