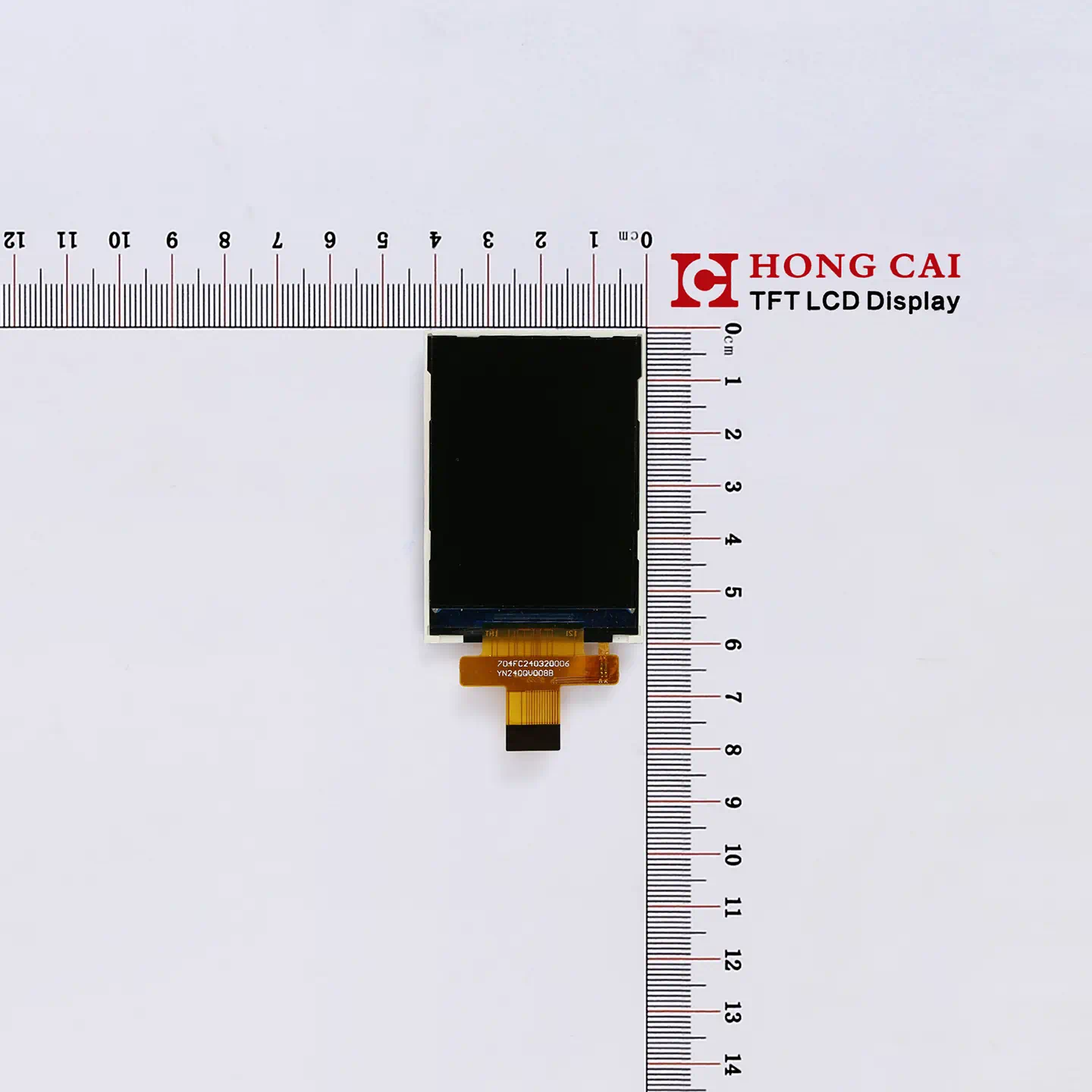

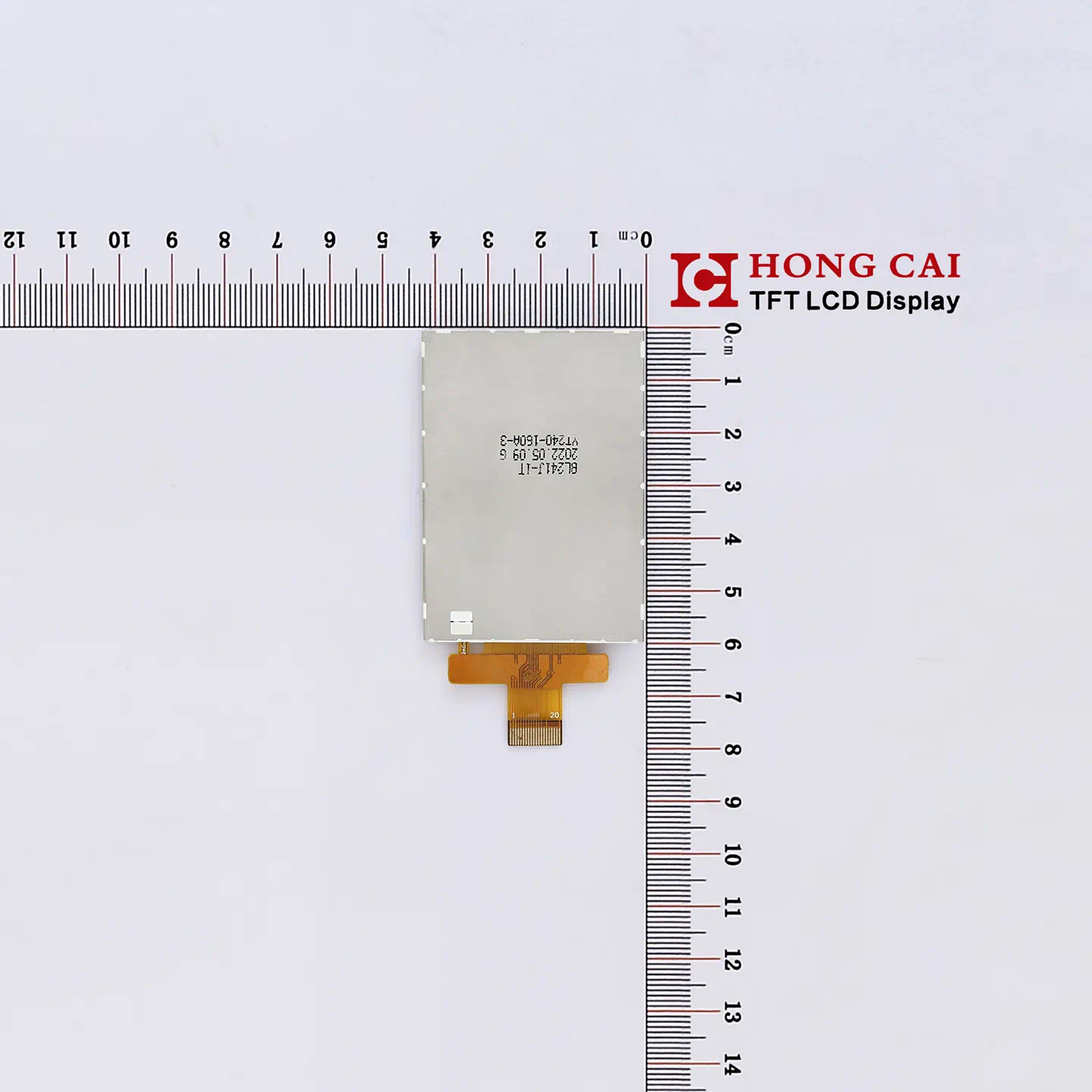

LCD Description
This high-performance 2.4 inch SPI TFT LCD screen is engineered for compact embedded systems, IoT devices, and smart handheld terminals. Featuring a sharp 240×320 resolution and an advanced ST7789V driver IC, this SPI TFT LCD screen 2.4 inch module ensures smooth data transmission and reliable display performance over a standard serial interface.
With its premium IPS full viewing angle technology and a bright 420 cd/m² backlight, this 2.4″ SPI TFT LCD display delivers exceptional color accuracy and vibrant visuals from any perspective, even in brightly lit environments. Whether you are developing a medical device or an industrial control panel, this versatile SPI TFT LCD screen 2.4 inch offers the perfect balance of a space-saving form factor ($42.72 \times 60.26 \times 2.30 \text{ mm}$) and superior sunlight readability.
| Item | Contents | Unit |
| Size | 2.4 | inch |
| LCM Dimension | 42.72（W）* 60.26（H） * 2.30(T) | mm |
| LCD Active Area | 36.72 × 48.96 | mm |
| Number OfDots | 240×320 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | ALL | |
| Driver IC | ST7789 | |
| Interface Type | SPI | |
| Operating Temperature | -20℃~ 70℃ | |
| Storage Temperature | -30℃~ 80℃ | |
| Backlight | 320 | cd/m² |
| Touchscreen | TBD |

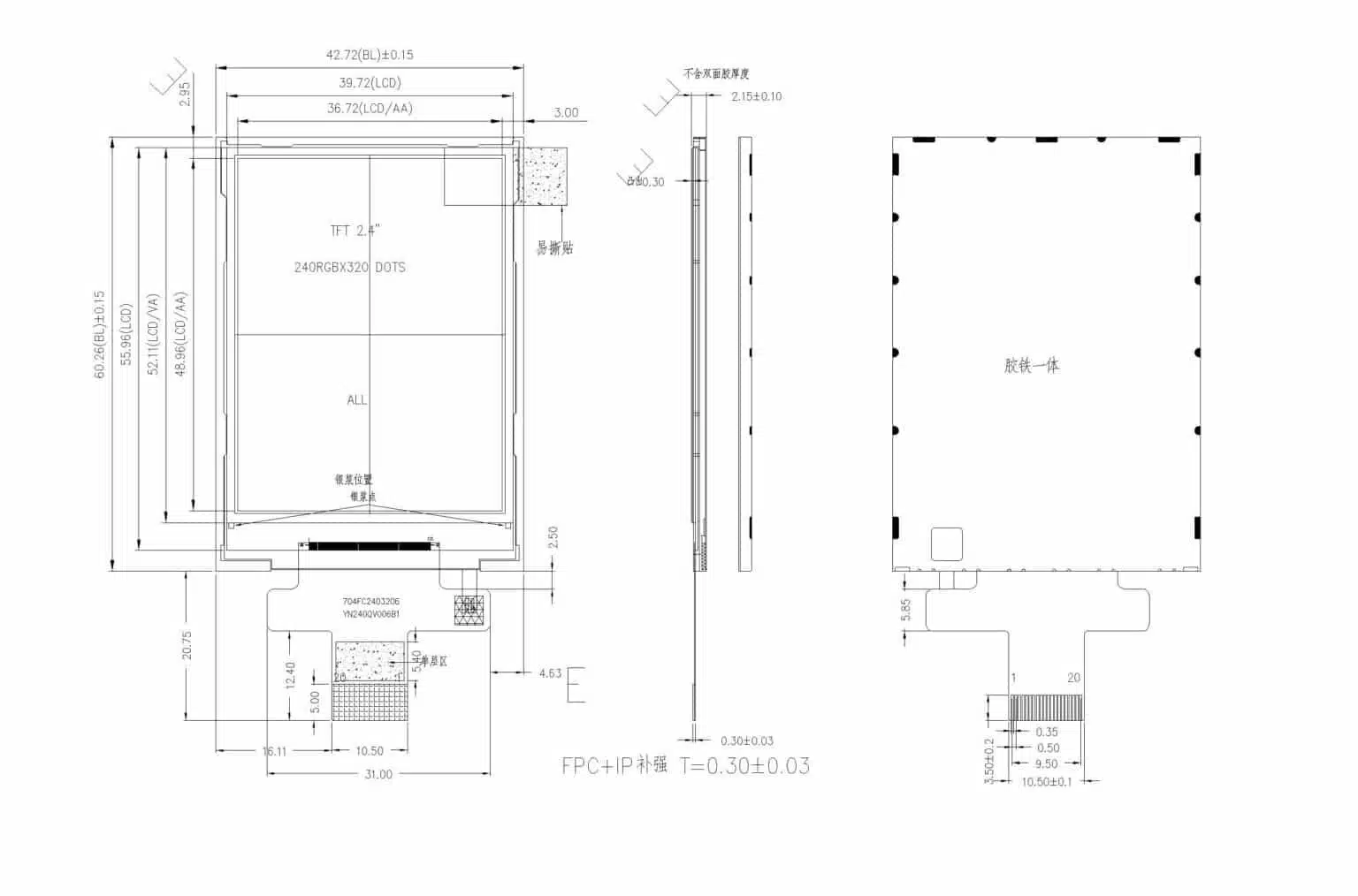

Drawing
SPI Interface
| NO. | Symbol | Description |
| 1 | GND | Ground |
| 2 | LEDA | |
| 3 | LEDK | |
| 4 | GND | Ground |
| 5 | VDD | POWER SUPPLY |
| 6 | RESET | Reset pin |
| 7 | SDA | Serial Data Input |
| 8 | SCL | Serial Clock |
| 9 | CS | Chip Select |
| 10 | RS | Destination register selection. |
| 11 | GND | Ground |
| 12 | SDO | Serial Data Output |
| 13 | TE | Frame mark. |
| 14 | NC | NC |
| 15 | GND | Ground |
| 16 | NC | NC |
| 17 | NC | NC |
| 18 | NC | NC |
| 19 | NC | NC |
| 20 | GND | Ground |
