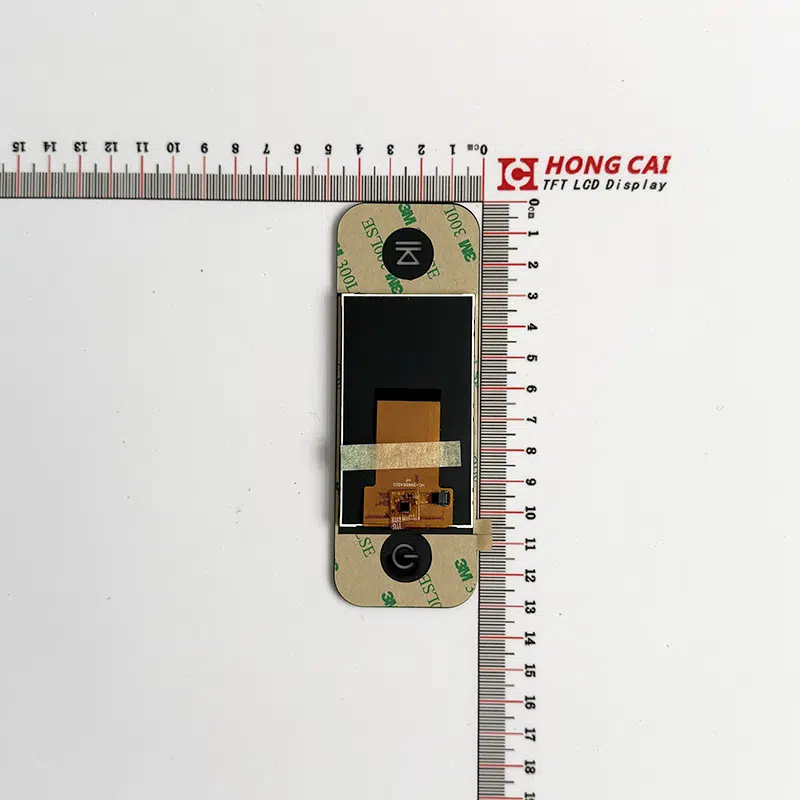

LCD Description
This premium Portrait LCD display module features a 2.96 inch screen, meticulously engineered to provide sharp visuals, vibrant color reproduction, and reliable performance for smart wearables, handheld terminals, and compact IoT devices. Featuring a portrait 360×640 high-resolution screen with an ALL-viewing-angle (IPS) experience, this active-matrix display ensures exceptional clarity and wide-angle consistency from any perspective.
Operating via a standard RGB interface, 2.96 Inch Portrait LCD Display optimizes data transmission efficiency while maintaining low power consumption. Driven by the highly efficient ST7701SN controller IC, it delivers stable frame rates and robust reliability across diverse environmental temperatures. To satisfy modern interactive demands, this specialized 2.96 Inch RGB LCD Display comes seamlessly integrated with a highly responsive Capacitive Touch Panel (CTP) and a crisp 350 cd/m² backlight, making it an ideal choice for high-brightness outdoor and indoor display applications.
| Item | Contents | Unit |
| Size | 2.96 | inch |
| LCM Dimension | 74.70（W）* 42.070（H） *2.05(T) | mm |
| LCD Active Area | 65.28* 36.72 | mm |
| Number OfDots | 360 * RGB * 640 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | ALL | |
| Driver IC | ST7701SN | |
| Interface Type | SPI+RGB 18BIT | |
| Operating Temperature | -20℃~ 70℃ | |
| Storage Temperature | -30℃~ 80℃ | |
| Touchscreen | Capacitive touchscreen |

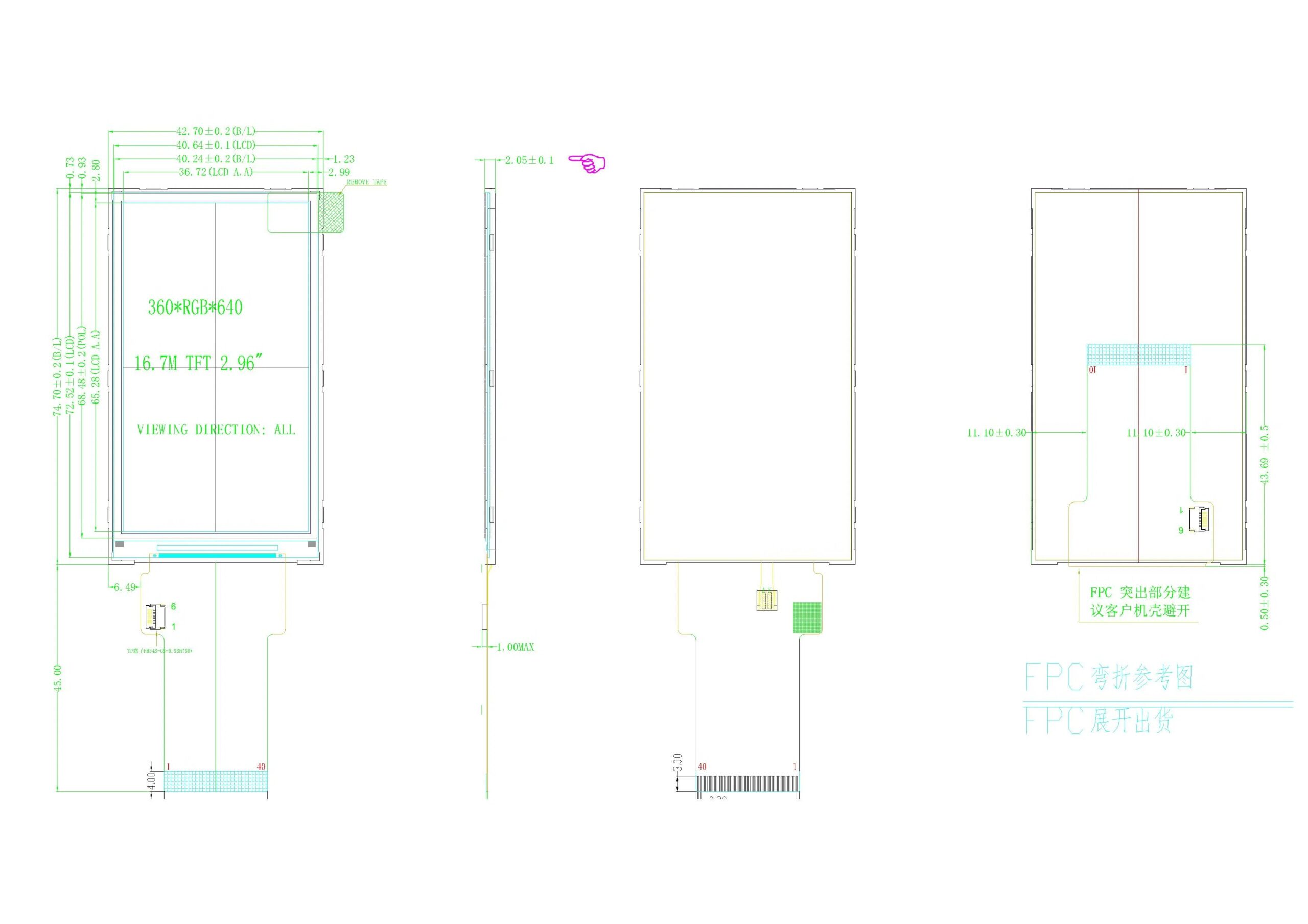

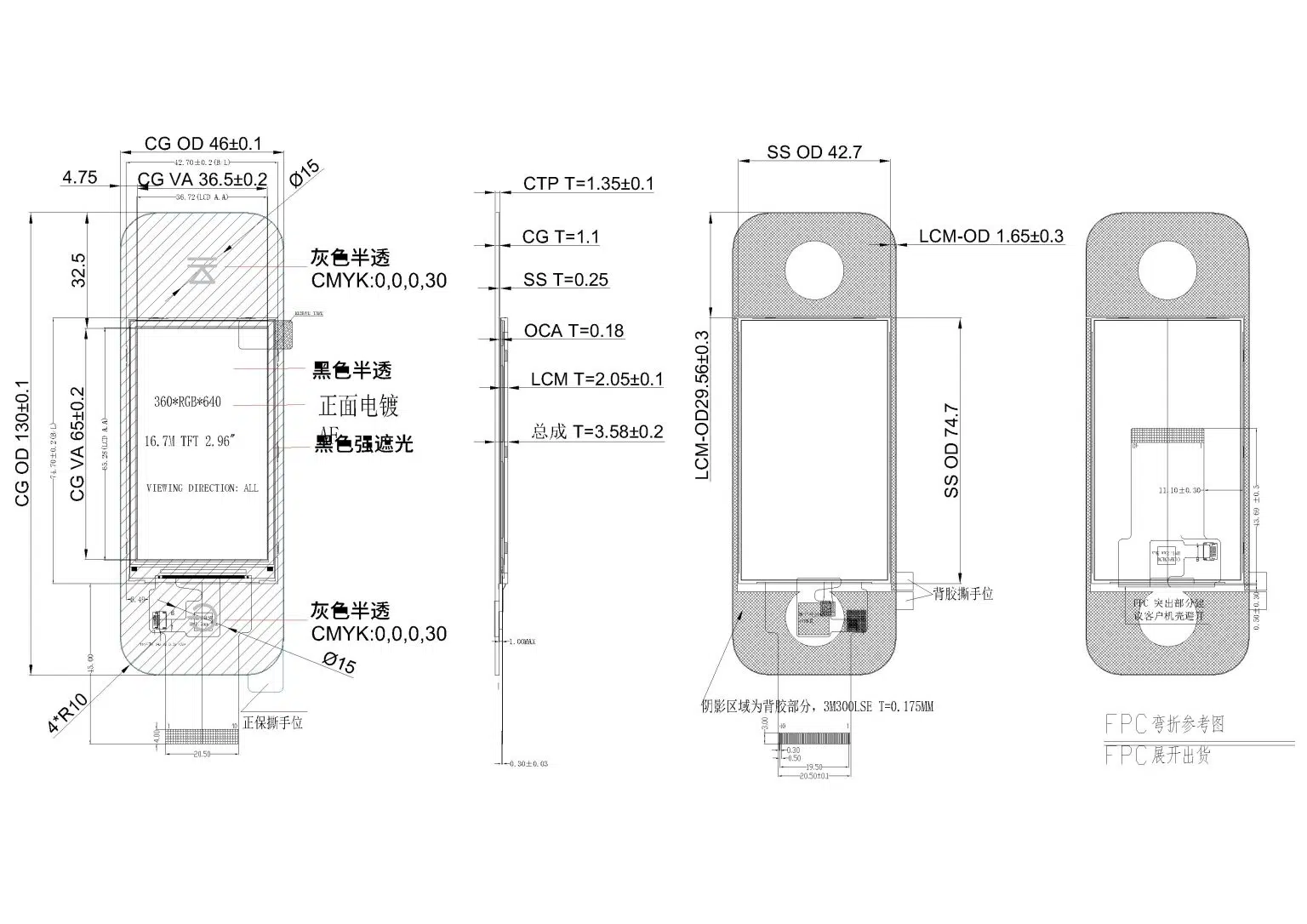

Drawing
RGB Interface
| NO. | Symbol | Description |
| 1 | LEDA | BACKLIGHT ANODE |
| 2-3 | LEDK | BACKLIGHT CATHODE |
| 4 | GND | Ground |
| 5 | VCC3.3V | POWER SUPPLY |
| 6 | RESET | Reset pin |
| 7-8 | NC | NC |
| 9 | SDA | SPI data input |
| 10 | SCK | SPI clock |
| 11 | CS | Chip Select |
| 12 | DOTCLK | Dot Clock Signa |
| 13 | DE | Data Enable Signal |
| 14 | VSYNC | Frame Synchronizing Signal |
| 15 | HSYNC | Line Synchronizing Signal |
| 16-21 | B0-B5 | BLUE Data Bus |
| 22-27 | G0-G5 | GREEN Data Bus |
| 28-33 | R0-R5 | RED Data Bus |
| 34 | GND | Ground |
| 35 | TP-INT | TP Communication interrupt for |
| 36 | TP-SDA | CTP SPI data input |
| 37 | TP-SCL | CTP SPI clock |
| 38 | TP_RST | TP Reset pin for |
| 39 | VCC3.3V | POWER SUPPLY |
| 40 | GND | Ground |
