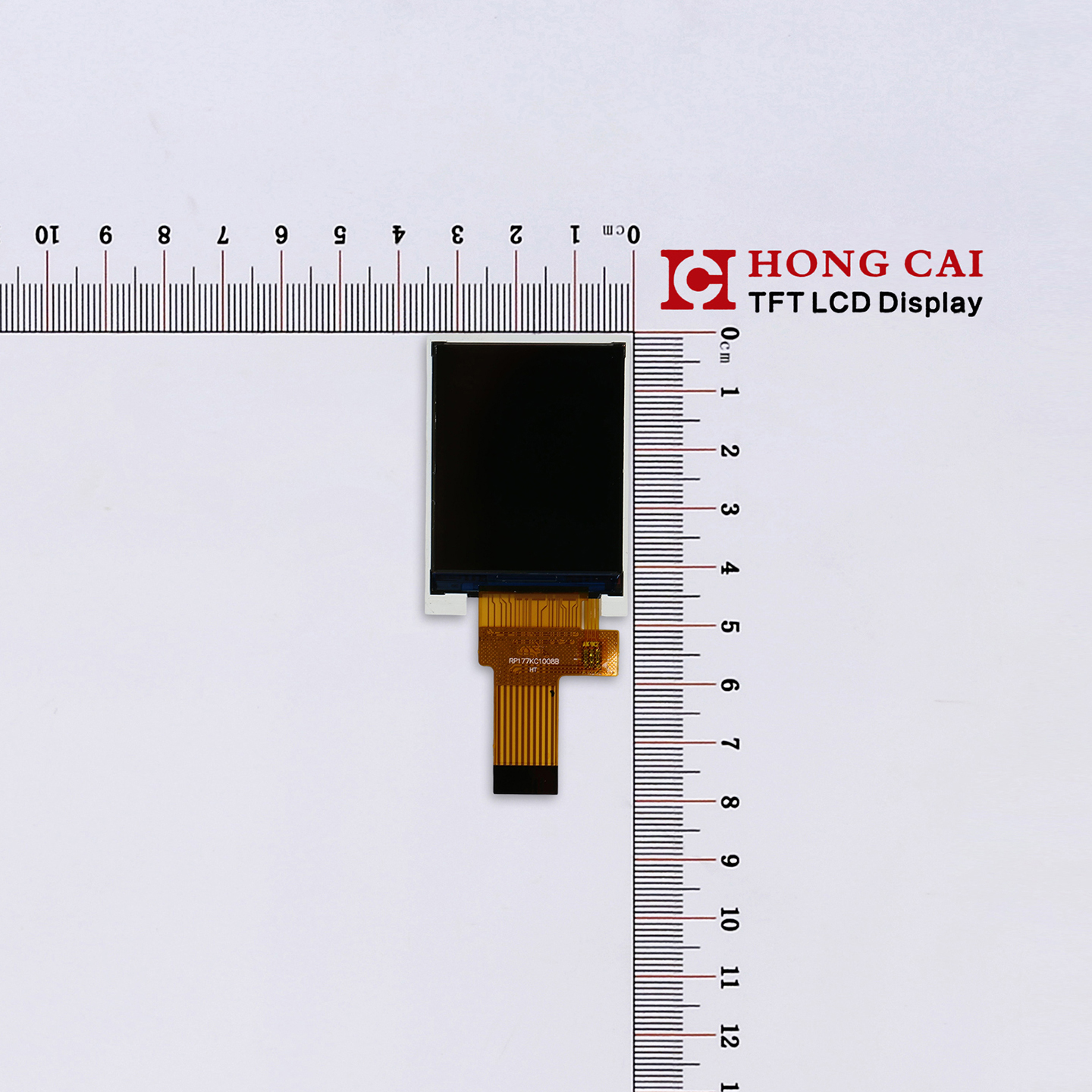

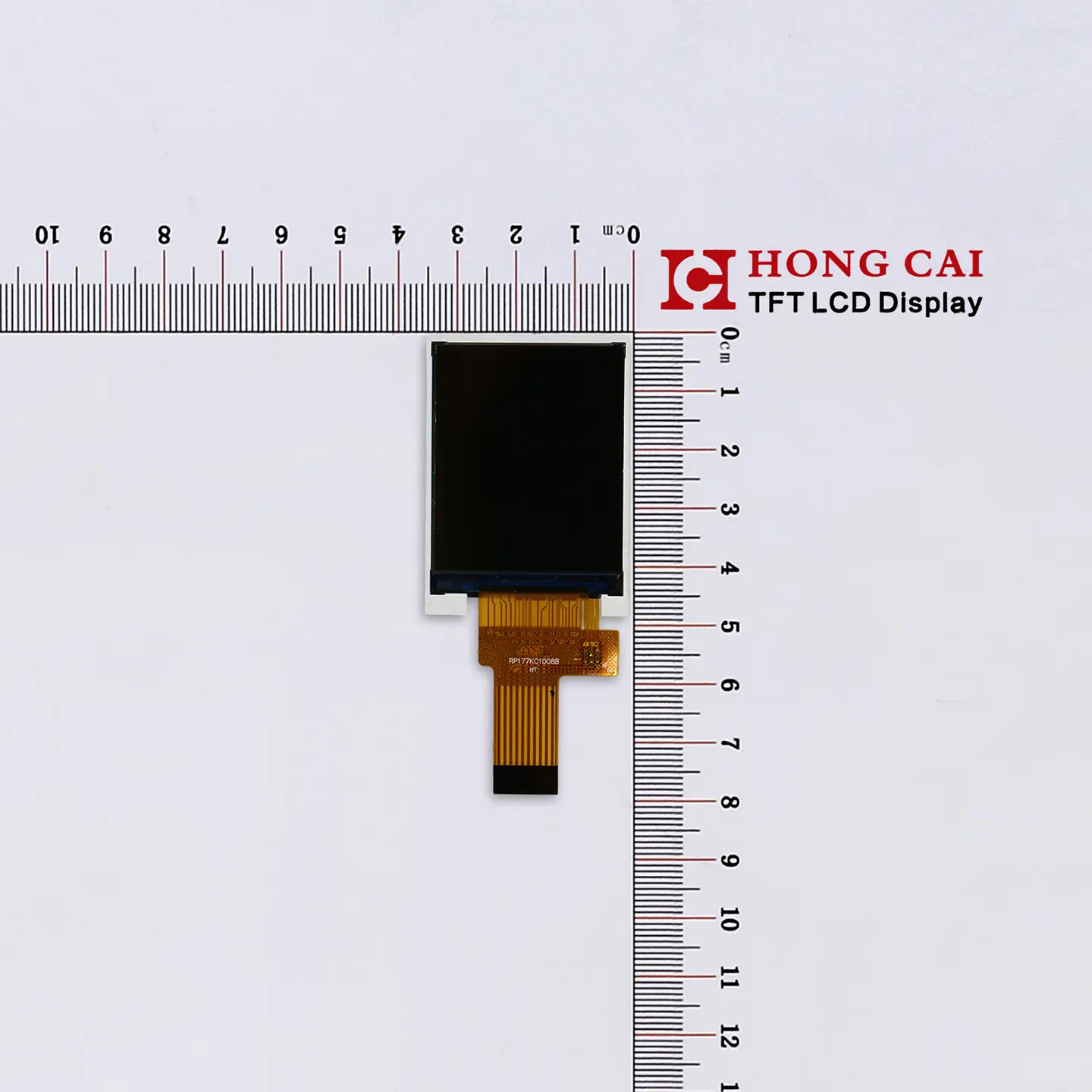

IPS LCD Display 1.77 inch: High-Performance SPI TFT Module
This IPS LCD Display module is a premium 1.77-inch imaging solution designed for industrial and consumer electronics. As a high-quality IPS LCD Display, it offers a crisp 128×160 resolution, ensuring that your user interface remains sharp and legible even in compact form factors.
Core Features of this IPS LCD Display
The primary advantage of choosing an IPS LCD Display over standard TN screens is the superior viewing angle. This model supports a full viewing direction (ALL), meaning the colors remain consistent and vibrant whether viewed from the top, bottom, or sides. With a high-brightness backlight of 380 cd/m², this IPS LCD Display is perfectly suited for both indoor and outdoor handheld devices.
As a professional LCD manufacturer, we offer custom FPC and touch panel (TBD) solutions to fit your project. Contact us for wholesale pricing and technical support.
tem | Contents | Unit |
| Size | 1.77 | inch |
| LCM Dimension | 34.00（W）× 45.83（H）×2.35(T) | mm |
| LCD Active Area | 28.03 × 35.04 | mm |
| Number Of Dots | 128×160 | pixel |
| Viewing Direction | ALL | |
| Driver IC | ST7735S or ILI9163V | |
| Interface Type | SPI | |
| Backlight Type | 3 LEDs | |
| Luminance | 300 | cd/m² |

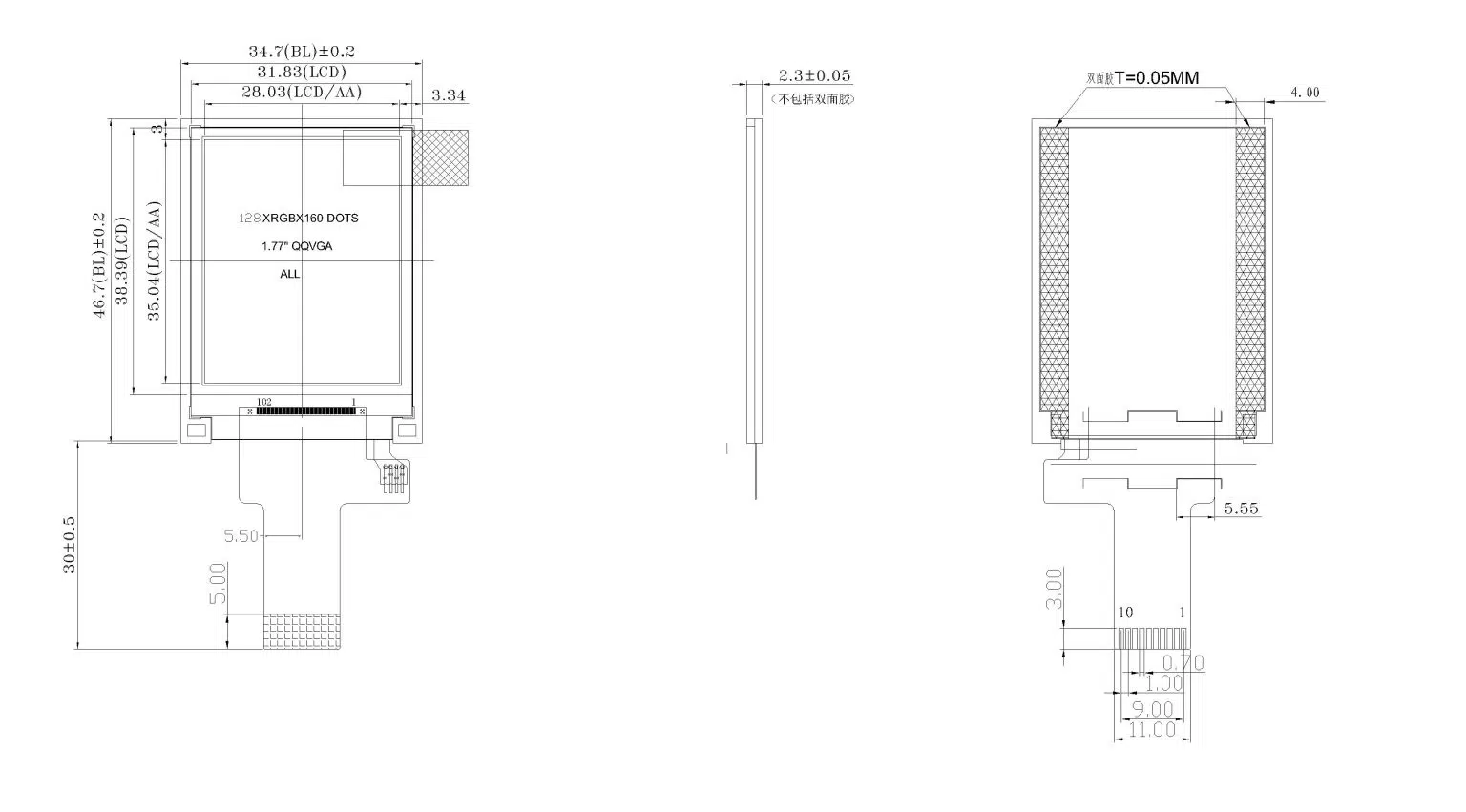

Drawing
SPI Interface
| NO. | Symbol | Description. |
| 1 | GND | Ground. |
| 2 | VDD | POWER SUPPLY（2.8V）. |
| 3 | LEDA | POWER SUPPLY+ FOR BACKLIGHT. |
| 4 | LEDK | POWER SUPPLY- FOR BACKLIGHTCATHODE. |
| 5 | RESET | Reset pin. |
| 6 | SDA | Serial Data Input. |
| 7 | D/C | Destination register selection. |
| 8 | SCL | SCL pin as Serial Clock when operates in the serial interface. |
| 9 | CS | Chip Select input pin (“Low” enable). |
| 10 | NC | NC |
