LCD Description

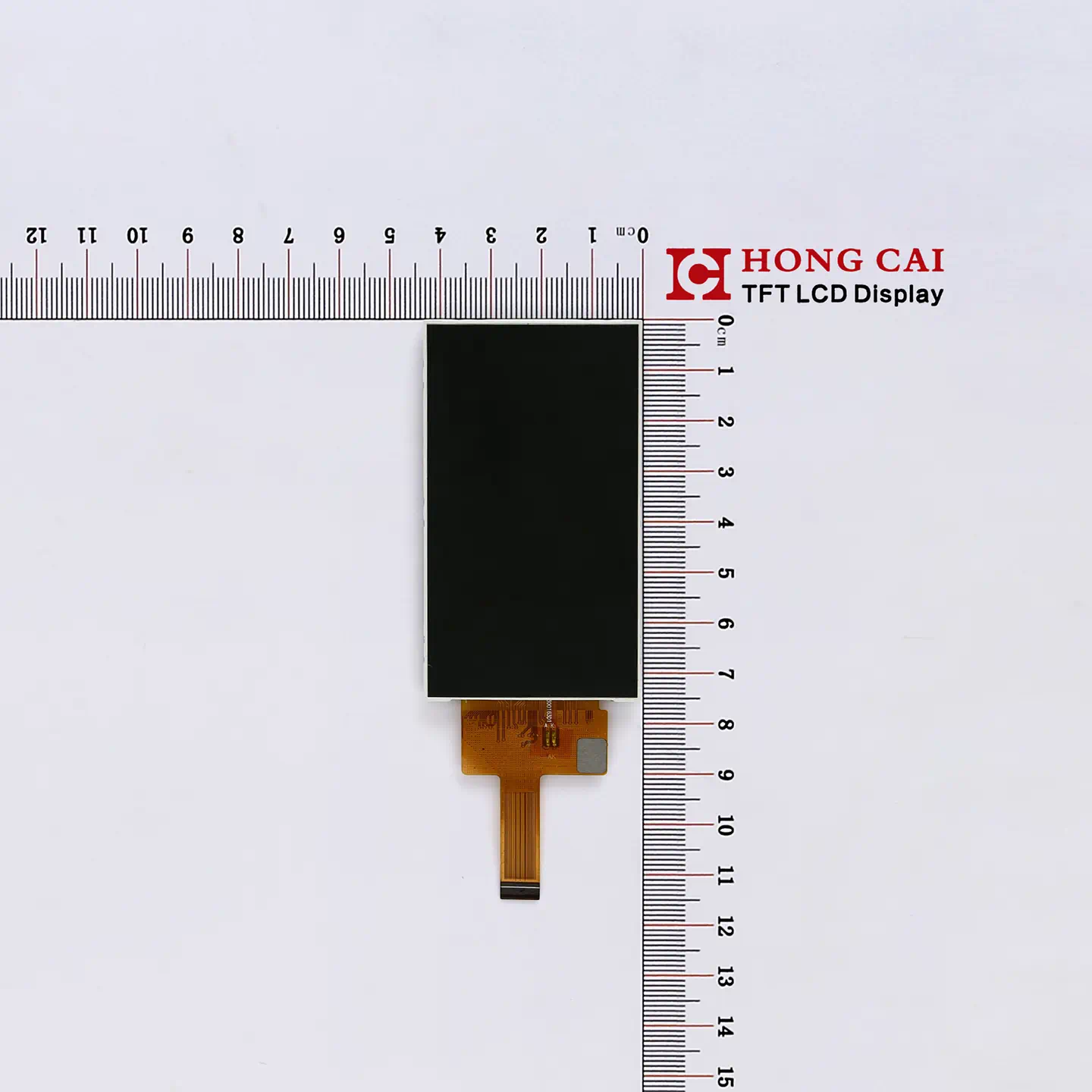

This premium 2.96 Inch MIPI LCD Display module is meticulously engineered to provide sharp visuals, vibrant color reproduction, and reliable performance for smart wearables, handheld terminals, and compact IoT devices. Featuring a portrait 360×640 high-resolution screen with an ALL-viewing-angle (IPS) experience, this active-matrix display ensures exceptional clarity and wide-angle consistency from any perspective.
Operating via a high-speed MIPI interface, this 2.96″ TFT LCD optimizes data transmission efficiency while maintaining low power consumption. Driven by the highly efficient ST7701SN controller IC, it delivers stable frame rates and robust reliability in diverse environment temperatures. To satisfy modern interactive demands, this specialized 2.96 Inch MIPI LCD Display comes seamlessly integrated with a highly responsive Capacitive Touch Panel (CTP) and a crisp 350 cd/m² backlight.
If your engineering project requires different specifications, please check our high-brightness MIPI IPS LCD Display 2.8 inch to find the perfect display solution for your hardware architecture.
| Item | Contents | Unit |
| Size | 2.96 | inch |
| LCM Dimension | 74.70（W）* 42.070（H） *2.05(T) | mm |
| LCD Active Area | 65.28* 36.72 | mm |
| Number OfDots | 360 * RGB * 640 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | ALL | |
| Driver IC | ST7701SN | |
| Interface Type | MIPI | |
| Operating Temperature | -20℃~ 70℃ | |
| Storage Temperature | -30℃~ 80℃ | |
| Touchscreen | Capacitive touchscreen |

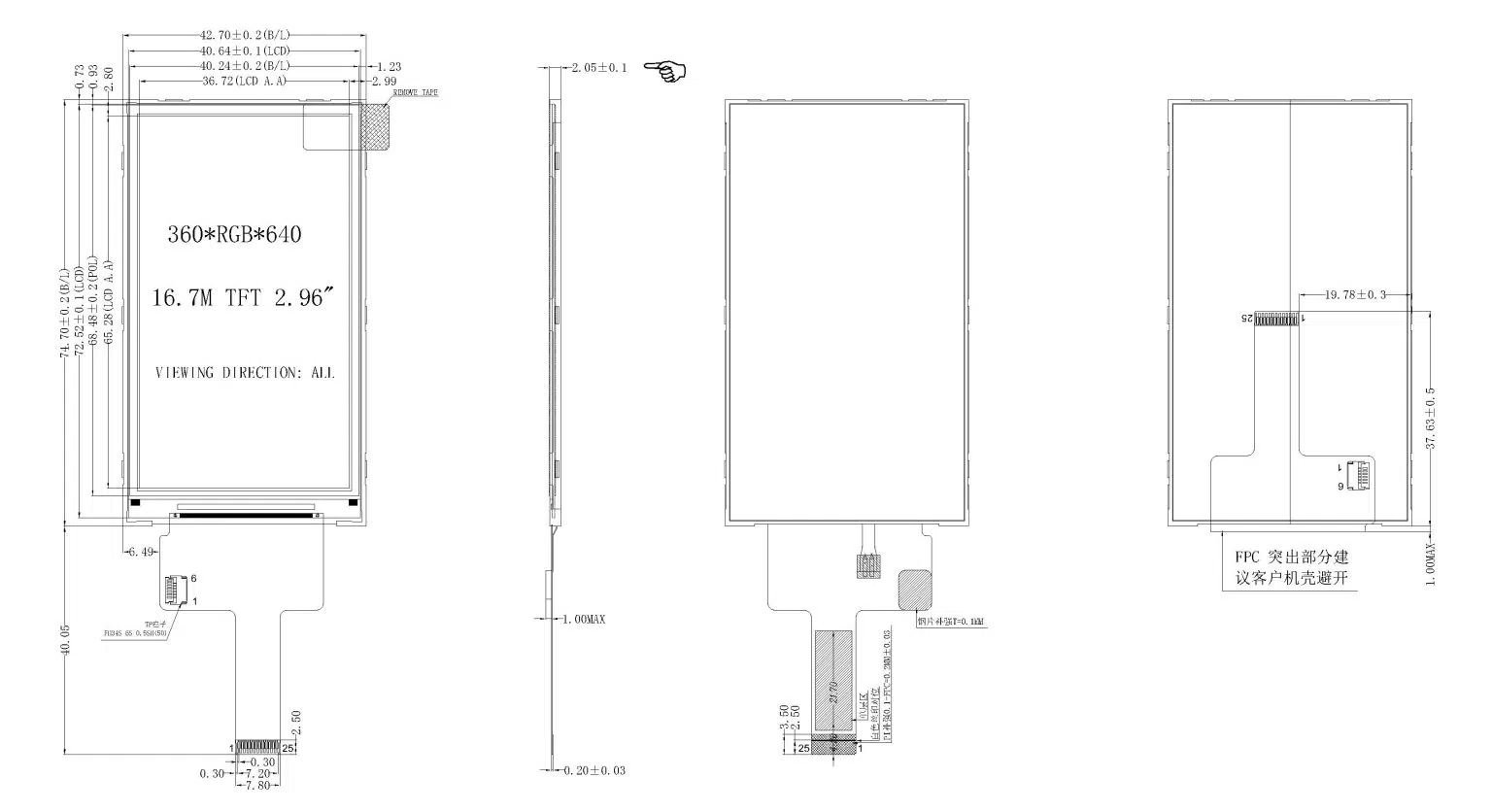

Drawing
MIPI Interface
| NO. | Symbol | Description |
| 1 | CTP_RST | TP Reset pin for |
| 2 | CTP_SDA | LCD/CTP SPI data input |
| 3 | CTP_SCL | LCD/CTP SPI clock |
| 4 | CTP_EINT | TP Communication interrupt for |
| 5 | GND | Ground |
| 6 | CTP_VCC | POWER SUPPLY |
| 7 | LEDK | BACKLIGHT CATHODE |
| 8 | LEDA | BACKLIGHT ANODE |
| 9 | NC | NC |
| 10 | GND | Ground |
| 11 | CLKP | MIPI-DSI CLOCK differential signal input pin |
| 12 | CLKN | MIPI-DSI CLOCK differential signal input pin |
| 13 | GND | Ground |
| 14 | D0P | MIPI-DSI Data differential signal input pins. (Data lane 0) |
| 15 | D0N | MIPI-DSI Data differential signal input pins. (Data lane 0) |
| 16 | GND | Ground |
| 17 | D1P | MIPI-DSI Data differential signal input pins. (Data lane 1) |
| 18 | D1N | MIPI-DSI Data differential signal input pins. (Data lane 1) |
| 19 | GND | Ground |
| 20 | LCM_RST | Reset pin |
| 21 | DSI_TE | Serves TE (Tearing Effect ) pin on MPU interface |
| 22 | VDDIO1.8V | I/O POWER SUPPLY |
| 23 | VDDIO2.8V | POWER SUPPLY |
| 24-25 | GND | Ground |
