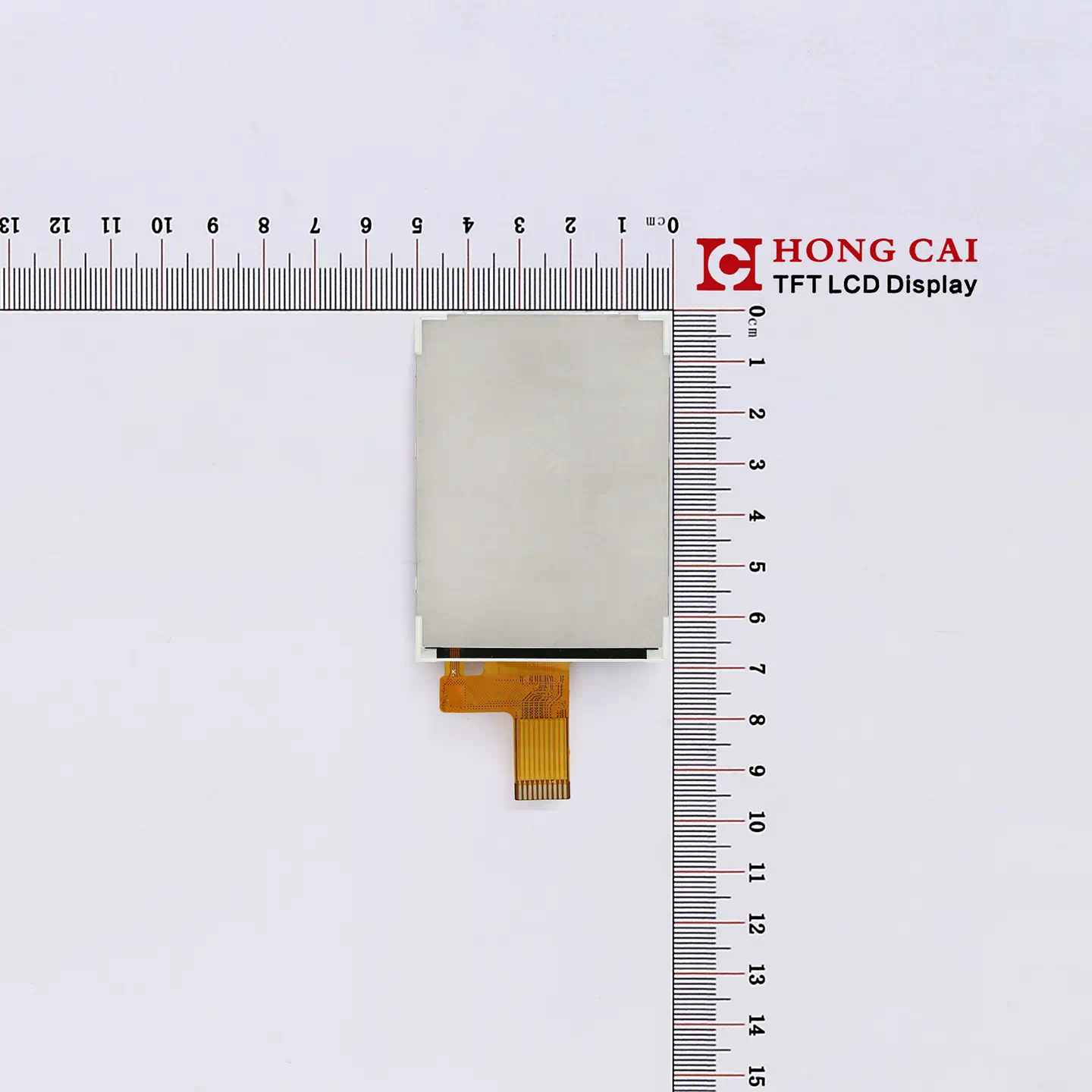

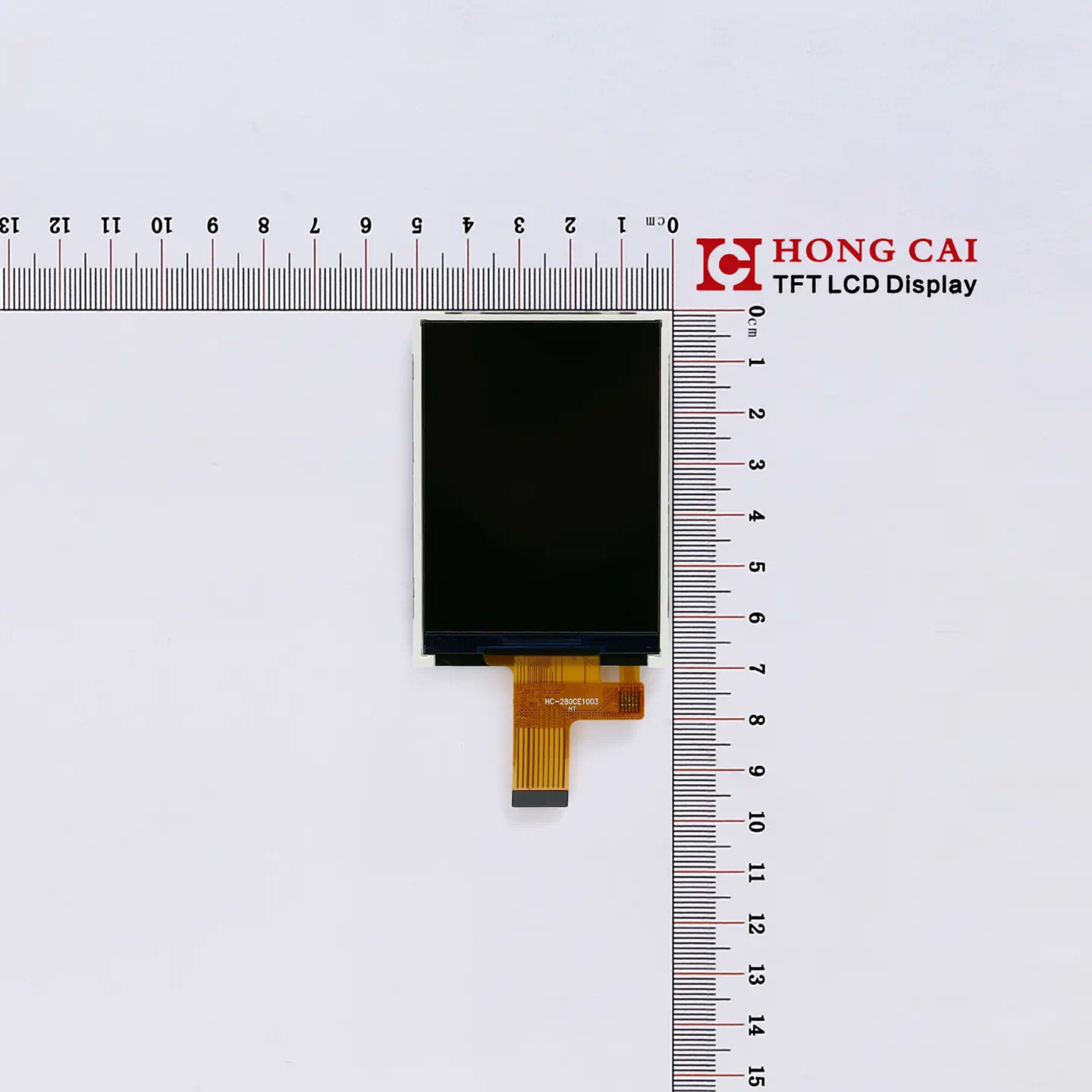

LCD Description
This premium 2.8 inch SPI TFT LCD Display module is engineered to deliver exceptional visual clarity, vibrant colors, and dependable performance for next-generation smart hardware and industrial equipment. Featuring a standard 240×320 dots resolution, this active-matrix liquid crystal screen utilizes a reliable 12 O’clock viewing direction to ensure optimal readability for your applications. As a highly versatile serial screen, this unit is driven by the efficient ST7789V controller IC.
Operating via a high-speed serial peripheral interface (SPI), this compact SPI TFT LCD Display minimizes required pin counts and optimizes power consumption, significantly simplifying hardware circuit design and firmware development for engineers.
this high-quality SPI TFT LCD Display variant guarantees crisp readability and outstanding optical performance for handheld devices and embedded systems. To meet diverse interactive demands, the touch panel method supports customizable integration (TBD) to perfectly fit your project requirements.
| Item | Contents | Unit |
| Size | 2.8 | inch |
| LCM Dimension | 50.00（W）* 69.20（H） * 2.30(T) | mm |
| LCD Active Area | 43.20* 57.60 | mm |
| Number Of Dots | 240 * RGB * 320 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | 12 o’clock | |
| Driver IC | ST7789V | |
| Interface Type | 4 SPI | |
| Operating Temperature | -20℃~ 70℃ | |
| Storage Temperature | -30℃~ 80℃ |

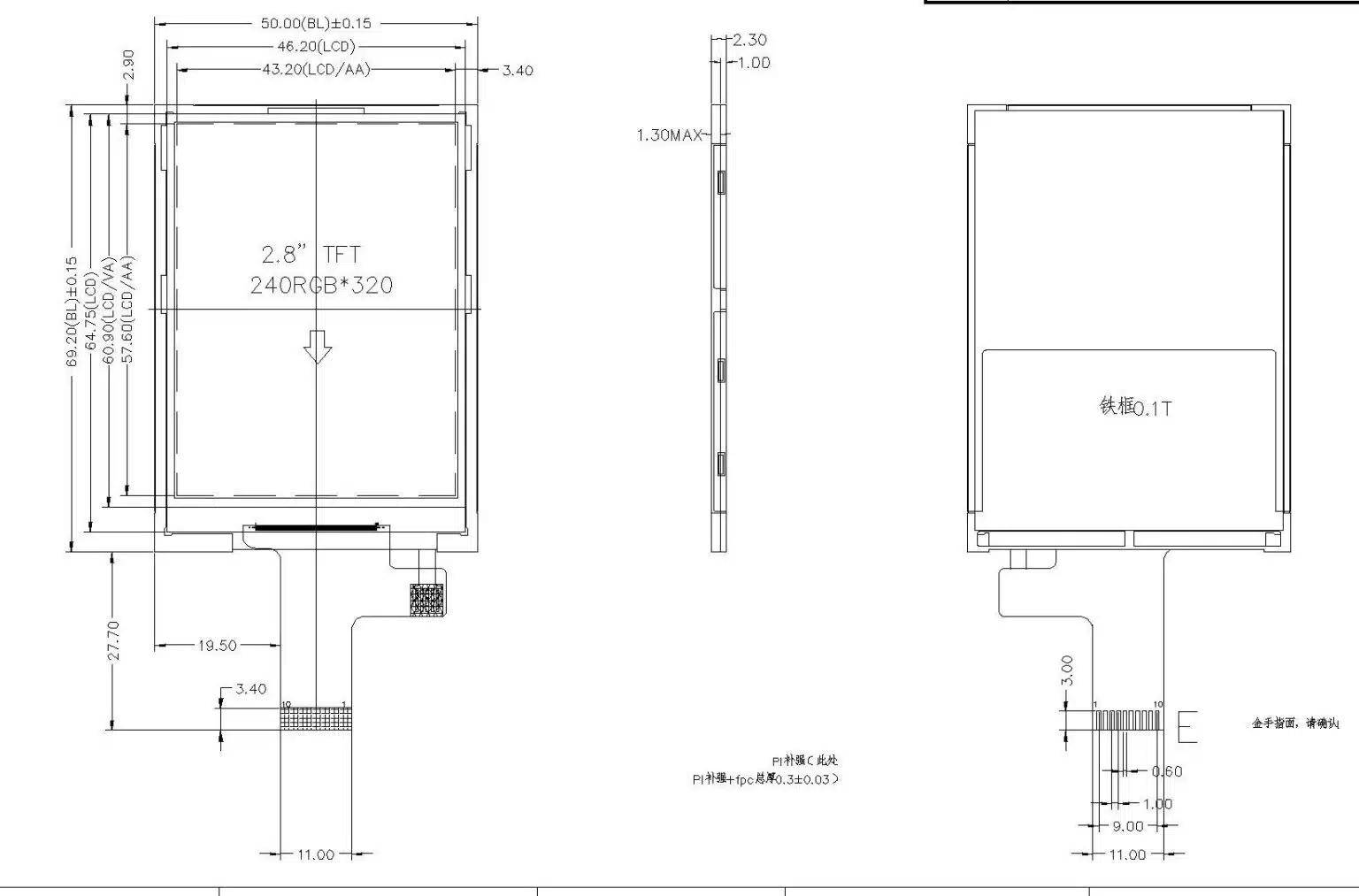

Drawing
SPI Interface
| NO. | Symbol | Description |
| 1 | GND | Ground |
| 2 | SPI_RS | Destination register selection. |
| 3 | /CS | Chip Select |
| 4 | SCL | Serial Clock |
| 5 | SDA | Serial Data Input |
| 6 | /RESET | Reset pin |
| 7 | VCC | POWER SUPPLY |
| 8 | GND | Ground |
| 9 | LEDA | BACKLIGHT ANODE |
| 10 | LEDK | BACKLIGHT CATHODE |
