LCD Description

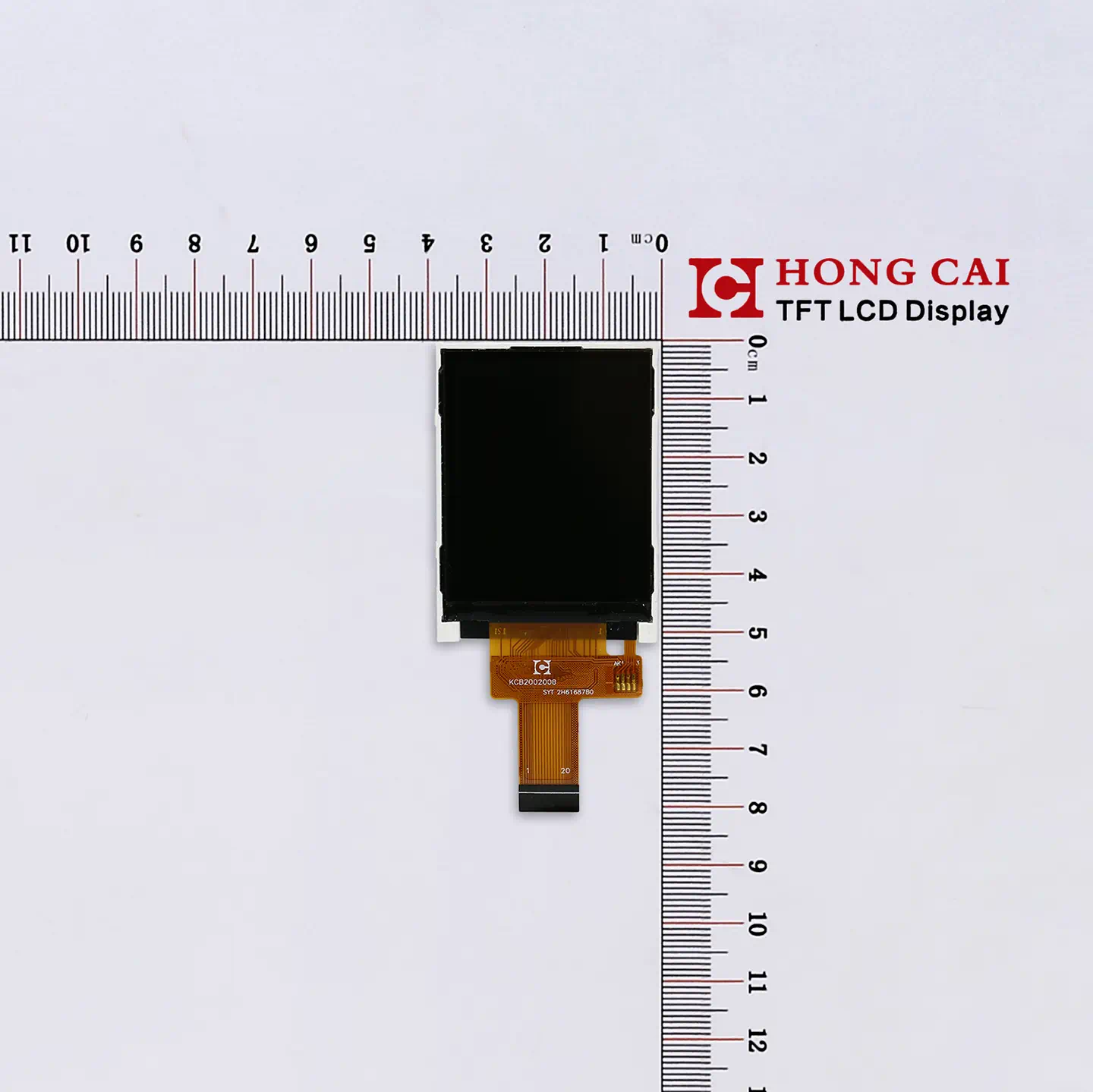

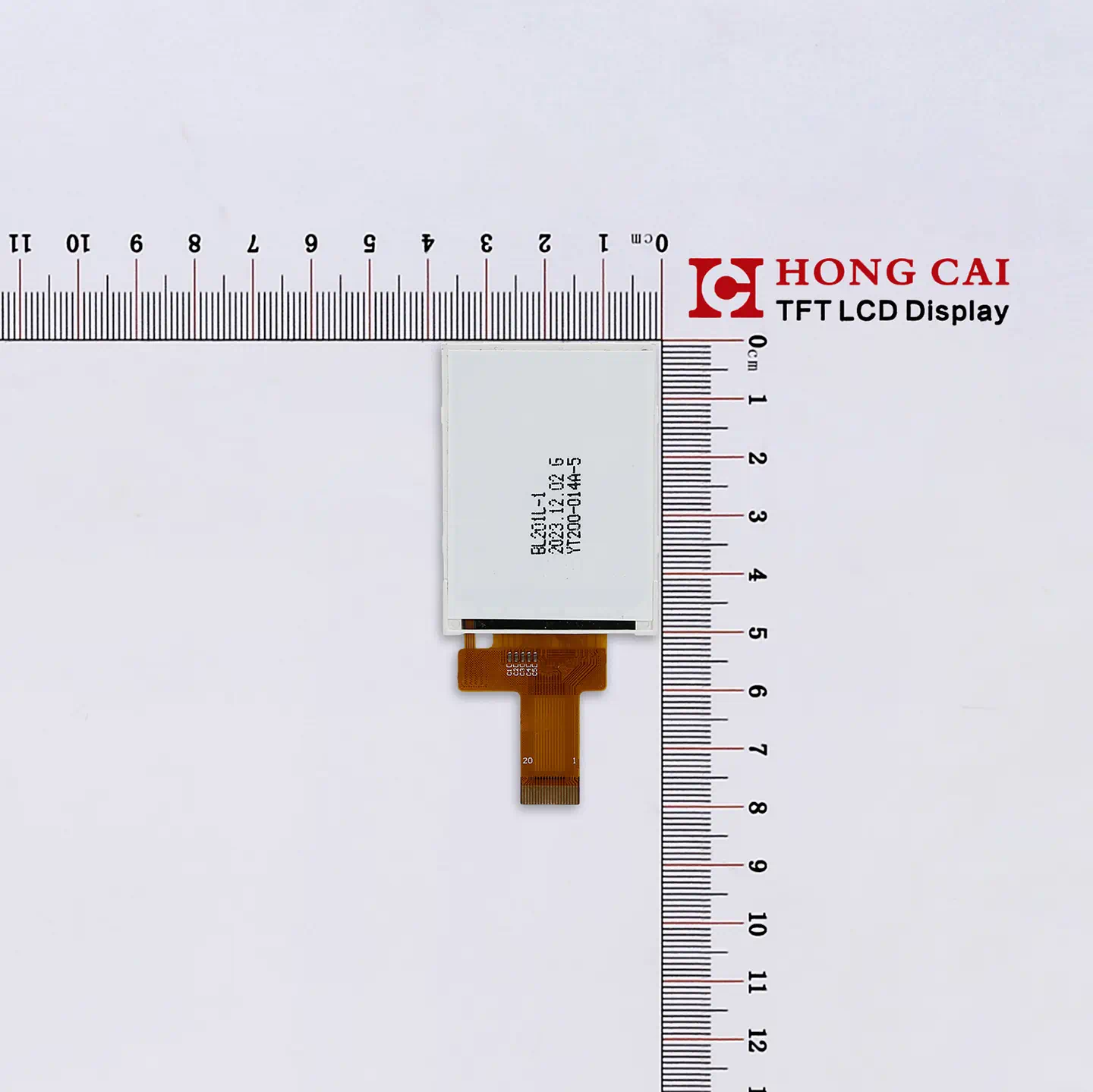

This high-performance MCU TFT LCD Display module is expertly engineered to deliver reliable visual quality for compact smart devices, industrial control panels, handheld instruments, and IoT terminals. Featuring a resolution of 176×220 dots, this active matrix screen ensures clear text rendering and vibrant graphics for small-form-factor user interfaces. Optimized for a 12 o’clock viewing direction, the display is ideal for devices primarily viewed from a traditional front-facing or slightly angled position.
this premium MCU TFT LCD Display supports standard 8-bit or 16-bit parallel interfaces for seamless。
standard MCU TFT LCD Display, it offers an exceptional balance between high refresh efficiency and cost-effectiveness, making it a top choice for hardware engineers worldwide who require stable parallel bus communications.
| Item | Contents | Unit |
| Size | 2 | inch |
| LCM Dimension | 34.70（W）* 47.95（H） * 2.2(T) | mm |
| LCD Active Area | 30.60x 40.80 | mm |
| Number OfDots | 176×220 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | 12 O’clock | |
| Driver IC | ILI9225G | |
| Interface Type | MCU | |
| Operating Temperature | -20℃~ 70℃ | |
| Storage Temperature | -30℃~ 80℃ | |
| Backlight | 350 cd/m² | |
| Touchscreen | TBD |

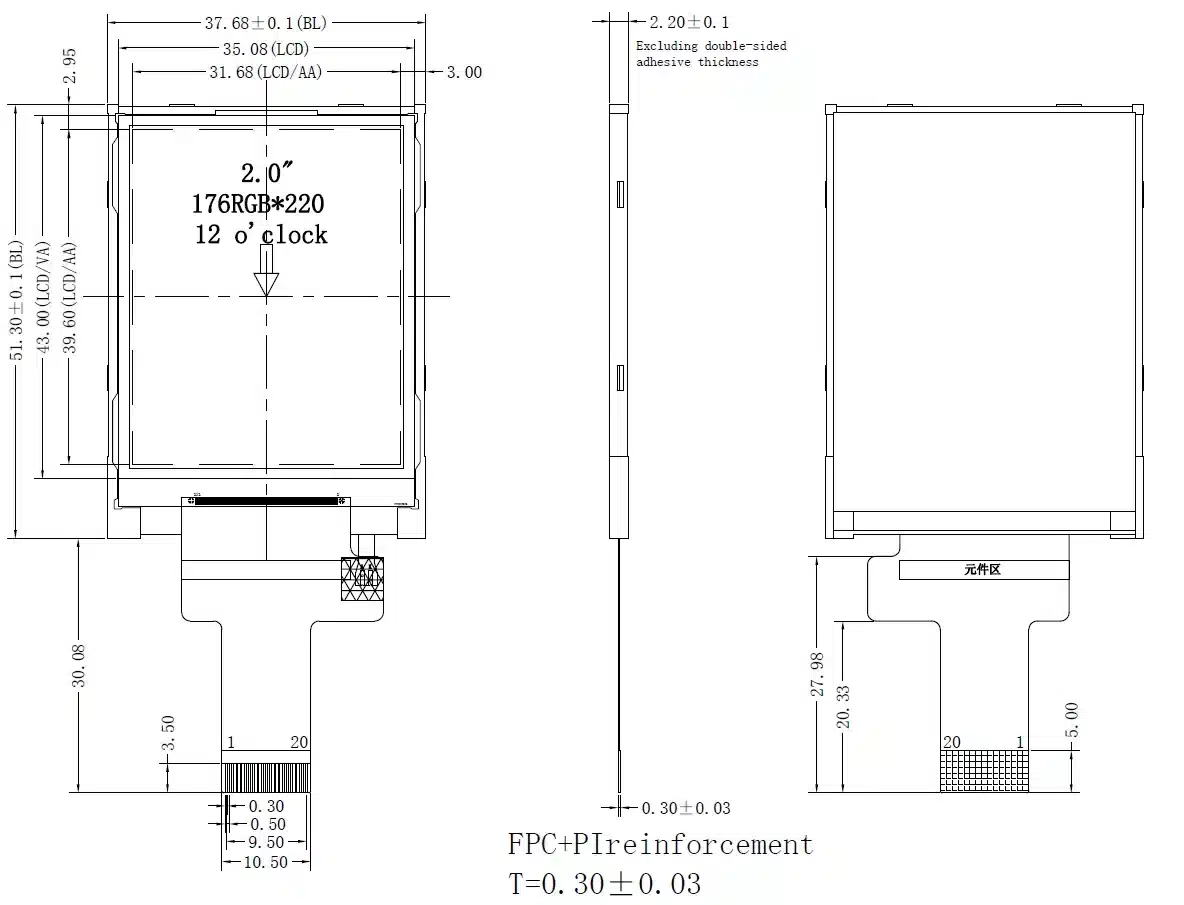

Drawing
MCU Interface
| NO. | Symbol | Description |
| 1 | VSS | Ground |
| 2 | RESET | Reset pin |
| 3 | RS | Data/Command register address. |
| 4 | WR-SCK | Write signal, rising-edge-trigger./ Serial Clock |
| 5 | RD | Read signal, rising-edge-active. |
| 6 | CS | Chip enable, Low-active. |
| 7 | DB0 | Data Bus |
| 8 | DB1 | Data Bus |
| 9 | DB2 | Data Bus |
| 10 | DB3 | Data Bus |
| 11 | DB4 | Data Bus |
| 12 | DB5 | Data Bus |
| 13 | DB6 | Data Bus |
| 14 | DB7 | Data Bus |
| 15 | SDI | Serial Data Input |
| 16 | VCC | POWER SUPPLY |
| 17 | TE | Frame mark. |
| 18 | IM2 | I/O choose |
| 19 | LEDA | BACKLIGHT ANODE |
| 20 | LEDK | BACKLIGHT CATHODE |
