LCD Description

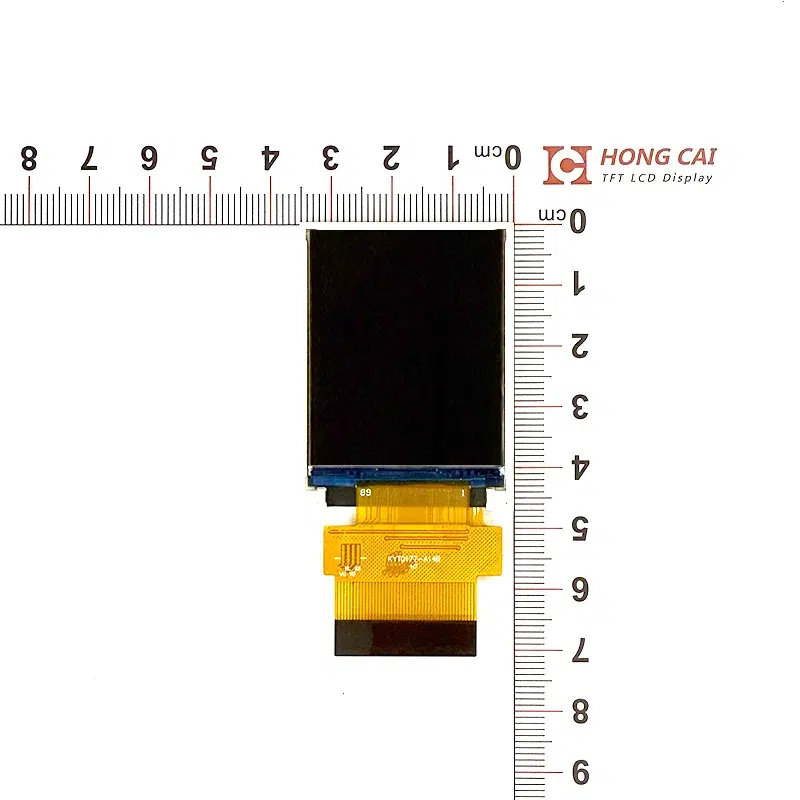

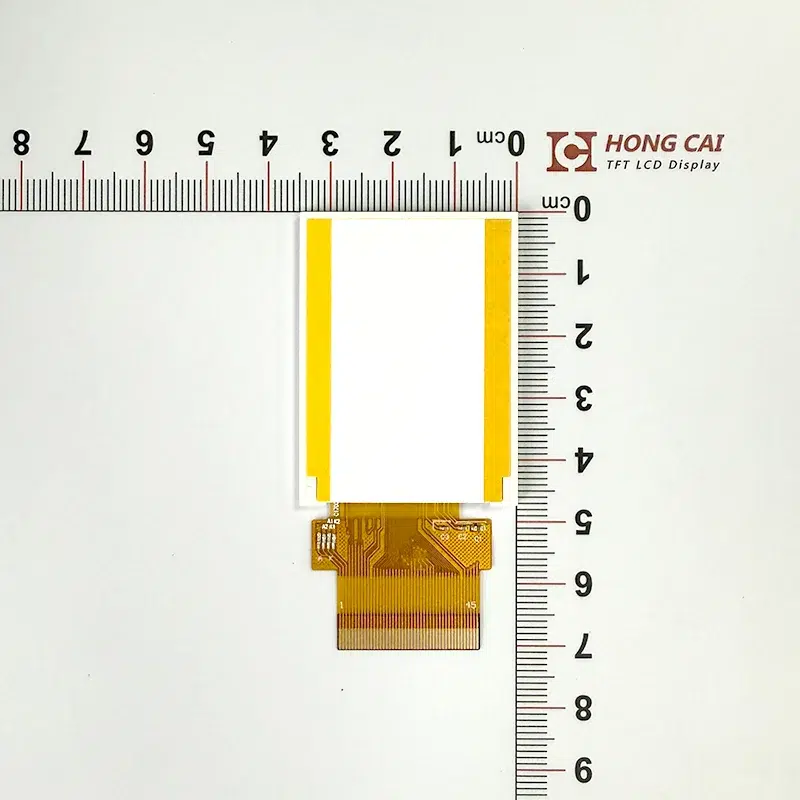

This IPS LCD Screen 1.77 inch is a high-quality, compact imaging solution perfect for industrial handheld devices, medical instruments, and smart wearable applications. Featuring a crisp 128×160 resolution, this module utilizes IPS (In-Plane Switching) technology to deliver “Free” or full viewing angles, ensuring consistent color accuracy and clarity from any direction.
Driven by the high-performance ILI9163V IC (also compatible with ST7735S), this IPS LCD Screen supports multiple interface options including SPI, MCU, and RGB, offering maximum flexibility for your PCB design and integration.
As a professional LCD manufacturer, we offer custom FPC and touch panel (TBD) solutions to fit your project. Contact us for wholesale pricing and technical support.
| Item | Contents | Unit |
| Size | 1.77 | inch |
| LCM Dimension | 34.7*46.70*2.3 | mm |
| LCD Active Area | 28.03* 35.04 | mm |
| Number Of Dots | 128×160 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | ALL O’clock | |
| Driver IC | ILI9163V | |
| Interface Type | SPI/MCU/RGB | |
| Operating Temperature | -20℃~ 70℃ | |
| Storage Temperature | -30℃~ 80℃ | |
| Backlight | 320 cd/m² | |
| Touchscreen | TBD |

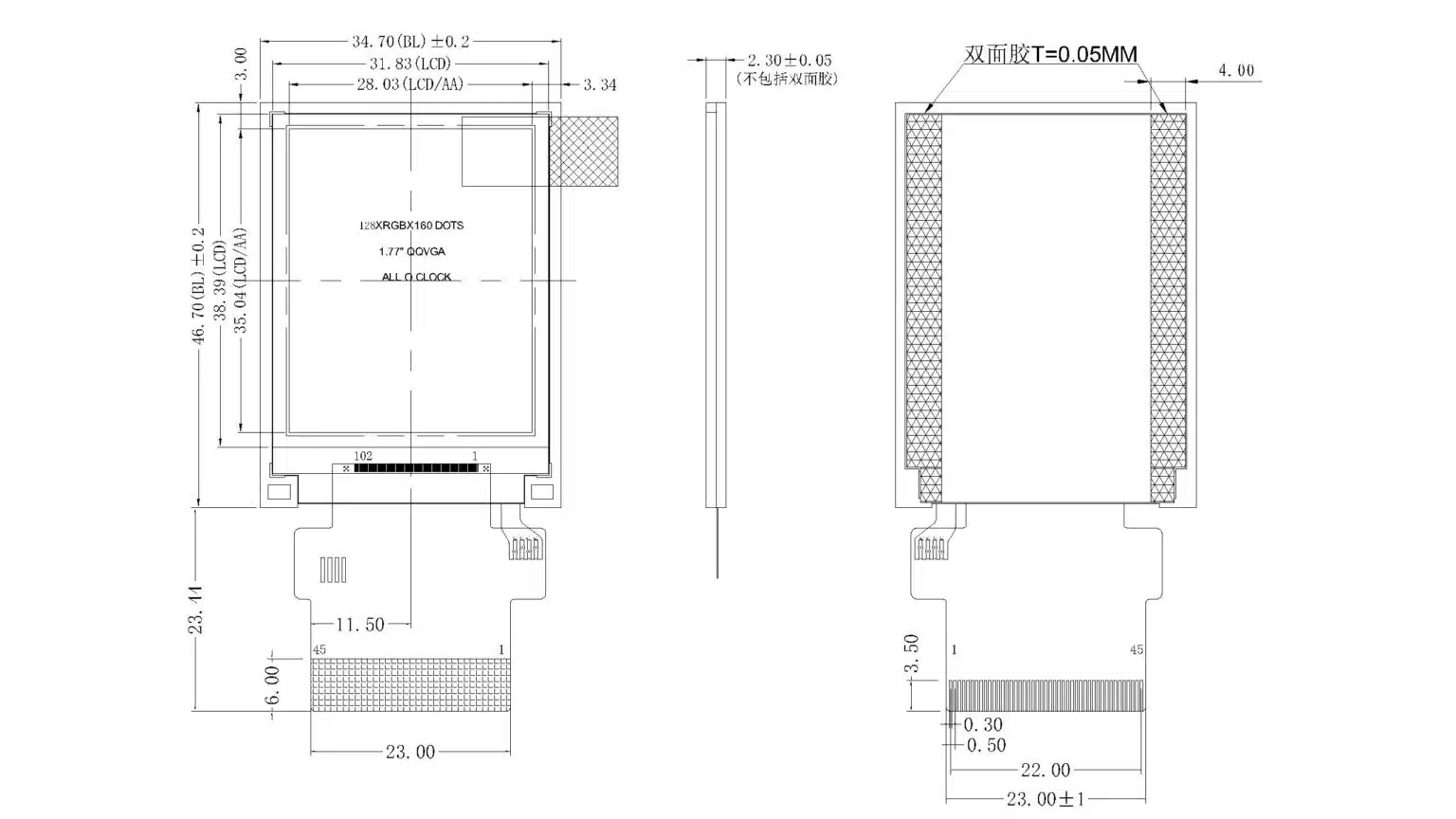

Drawing
SPI/MCU/RGB Interface
| NO. | Symbol | Description |
| 1 | LEDA | BACKLIGHT ANODE |
| 2 | LED K1 | BACKLIGHT CATHODE |
| 3 | LED K2 | BACKLIGHT CATHODE |
| 4-6 | IM0-IM2 | I/O choose |
| 7 | RCM0 | |
| 8 | RCM1 | |
| 9 | SDA | Data Enable Signal |
| 10 | VCC | POWER SUPPLY |
| 11 | GND | Ground |
| 12 | RD | Read signal, rising-edge-active. |
| 13 | RS/SCL | Data/Command register address./Serial Clock |
| 14-31 | DB17-DB0 | Data/Command register address./Serial Clock |
| 32 | TE | Frame mark. |
| 33 | RESET | Chip Select |
| 34 | CS | Chip Select |
| 35 | WR | Write signal, rising-edge-trigger. |
| 36 | DCKL | POWER SUPPLY |
| 37 | DE | Ground |
| 38 | HS | Ground |
| 39 | VS | BACKLIGHT ANODE |
| 40 | GND | Ground |
| 41 | IOVCC | POWER SUPPLY |
| 42 | NC | NC |
| 43 | NC | NC |
| 44 | NC | NC |
| 45 | NC | NC |
