TFT LCD Display Products
LCD Displays Filter
-
RGB Display LCD Screen 3.97 inch
3.97″ 480×800 IPS Screen
- Size: 3.97 inch
- Resolution: 480 * RGB * 800
- View Direction: IPS
- Interface: RGB
- Driver IC: ST7701
- Touchscreen: TBD
- Brightness(cd/m²): 380
- Outline Dimension:: 57.14（W）* 96.85（H） * 1.85(T)
-
SPI LCD Display Screen
1.77″ 128×160 LCD Screen
- Size: 1.77 inch
- Resolution: 128×160
- View Direction: 12 O’clock
- Interface: SPI
- Driver IC: ST7735S
- Touchscreen: TBD
- Brightness(cd/m²): 380
- Outline Dimension:: 34.7*46.70*2.3
-
ILI9163v LCD Display Screen 1.8 inch
1.77″ TFT Screen
- Size: 1.77 inch
- Resolution: 128×160
- View Direction: 12 O’clock
- Interface: SPI/MCU/RGB
- Driver IC: ILI9163V
- Touchscreen: TBD
- Brightness(cd/m²): 320
- Outline Dimension:: 34.7*46.70*2.3
-
14.5 inch LCD Display Screen
Landscape Display 2560×720
- Size: 14.5 inch
- Resolution : 2560 × 3(RGB) × 720
- View Direction: IPS
- Interface: MIPI
- Driver IC:
- Touchscreen: In-cell
- Brightness(cd/m²): 1000
- Outline Dimension: 363.50 (W) × 113.5 (H) mm
-
12.3 inch LCD Display Screen
Landscape Display 1920×720
- Size: 12.3 inch
- Resolution : 1920 × 3(RGB) × 720
- View Direction: IPS
- Interface: LVDS
- Driver IC:
- Touchscreen: In-cell
- Brightness(cd/m²): 1000
- Outline Dimension: 300.0 (W) × 123.5 (H) mm× 4.5 (H) mm
-
12.1 inch LCD Display Screen
Landscape Display 1280×800
- Size: 12.1 inch
- Resolution : 1280(H)x800(V) dots
- View Direction: IPS
- Interface: LVDS
- Driver IC:
- Touchscreen: CTP
- Brightness(cd/m²): 1000
- Outline Dimension: 277.70×180.60×6.12 mm
-

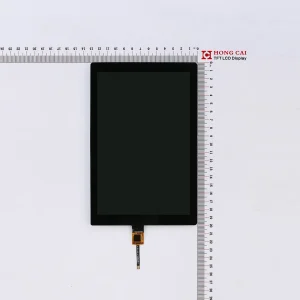

10.1 inch LCD Display Screen
Portrait Display 800×1280
- Size: 10.1 inch
- Resolution : 800 * RGB * 1280
- View Direction: IPS
- Interface: LVDS
- Driver IC: JD9365DA
- Touchscreen: CTP
- Brightness(cd/m²): 350
- Outline Dimension: 143.00 x 228.60 x 2.60 mm
-
Stretched Bar Display 9.3 inch
Vertical Bar Display
- Size: 9.3 inch
- Resolution : 600×1600 pixel
- View Direction: IPS
- Interface: MIPI
- Driver IC: ST7703
- Touchscreen: TBD
- Brightness(cd/m²): 500
- Outline Dimension: 89(H) x 231(V) x4.6(T)
-
8.0 inch LCD Display Screen
Portrait Screen 800×1280
- Size: 8.0 inch
- Resolution : 800 * RGB * 1280 pixel
- View Direction: IPS
- Interface: MIPI 2 or 4 lanes
- Driver IC: JD9365DA
- Touchscreen: Capacitive touchscreen
- Brightness(cd/m²): 400
- Outline Dimension: 114.60（W）* 184.10（H） * 2.60(T) mm
-
Bar type LCD Display Screen 7.8 inch
Vertical Stretched Display Screen
- Size: 7.8 inch
- Resolution : 400×1280 dots
- View Direction: IPS
- Interface: MIPI
- Driver IC: ST7703
- Touchscreen: Capacitive
- Brightness(cd/m²): 550
- Outline Dimension: 67.8*206.18*4.6 mm
-
LVDS Display LCD Screen 7.0 inch
7 inch TFT LCD 1024×600
- Size: 7.0 inch
- Resolution : 1024*600 dots
- View Direction: IPS
- Interface: LVDS
- Driver IC: 2 ICs
- Touchscreen: Capacitive
- Brightness(cd/m²): 550
- Outline Dimension: 164.30（W）* 97.00（H） * 2.60(T)mm
-
In Cell LCD Screen TDDI Display
Vertical Display Screen TDDI
- Size: 6.6 inch
- Resolution : 720 * RGB * 1440
- View Direction: IPS
- Interface: MIPI
- Driver IC: NT36525B
- Touchscreen: In Cell
- Brightness(cd/m²): 1000
- Outline Dimension: 83.90（W）* 160.36（H） *4.30(T) mm
-
MIPI LCD Screen 6 inch
Vertical display screen
- Size: 5.94 inch
- Resolution : 720 * RGB * 1280
- View Direction: IPS
- Interface: MIPI
- Driver IC: ILI9881D
- Touchscreen: CTP
- Brightness(cd/m²): 450
- Outline Dimension: 77.46（W）* 141.05（H） * 1.7(T)
-
Innolux LCD Display Original 5.6 inch
Innolux Original TFT LCD
- Size: 5.6 inch
- Resolution : 640 × (RGB) × 480
- View Direction: Original
- Interface: RGB
- Driver IC: Original
- Brightness(cd/m²): 320
- Outline Dimension: 126.5(W) × 100(H) × 5.7(D) mm
-
Vertical Screen LCD Display 5 inch 4:3
RGB TFT Display 480×854
- Size: 4.95 inch
- Resolution : 480 * RGB * 854
- View Direction: IPS
- Interface: SPI+RGB24BIT
- Driver IC: ST7701
- Touchscreen: CTP
- Brightness(cd/m²): 350
- Outline Dimension: 65.3（W）* 119.3（H） * 2.10(T)
-
Bar Screen 4.5 inch
Long strip screen LCD Display
- Size: 4.58 inch
- Resolution : 320×960
- View Direction: ALL
- Interface: RGB
- Driver IC: ST7701
- Touchscreen: CTP
- Brightness(cd/m²): 450
- Outline Dimension: 41.57 (H)*118.8 (V)*2.5(D)
-
SPI LCD Display IPS Screen 4.3 inch
Standard 4.3″ TFT Display 480×272
- Size: 4.3 inch
- Resolution : 480 * RGB *272
- View Direction: 12 O’clock or ALL
- Interface: SPI
- Driver IC: NV3047
- Touchscreen: CTP
- Brightness(cd/m²): 450
- Outline Dimension: 105.5×67.2×3
-
IPS LCD MCU Display 3.97 inch
TFT Display 480×800
- Size: 3.97 inch
- Resolution : 480 * RGB *800
- View Direction: IPS
- Interface: MCU
- Driver IC: NT35510
- Touchscreen: CTP
- Brightness(cd/m²): 350
- Outline Dimension: 57.14（W）* 96.85（H） * 1.85(T)
-
MIPI DSI LCD Display Screen 3.97 inch
MIPI TFT Display
- Size: 3.97 inch
- Resolution : 480 * RGB *800
- View Direction: IPS
- Interface: MIPI
- Driver IC: ST7701
- Touchscreen: CTP
- Brightness(cd/m²): 350
- Outline Dimension: 57.14（W）* 96.85（H） * 1.85(T)
-
3.0 inch LCD Display IPS Screen
9:16 TFT Display
- Size: 2.96 inch
- Resolution : 360 * RGB * 640
- View Direction: IPS
- Interface: RGB 16BIT
- Driver IC: ST7701
- Touchscreen: CTP
- Brightness(cd/m²): 350
- Outline Dimension: 74.70（W）* 42.070（H） *2.05(T)
