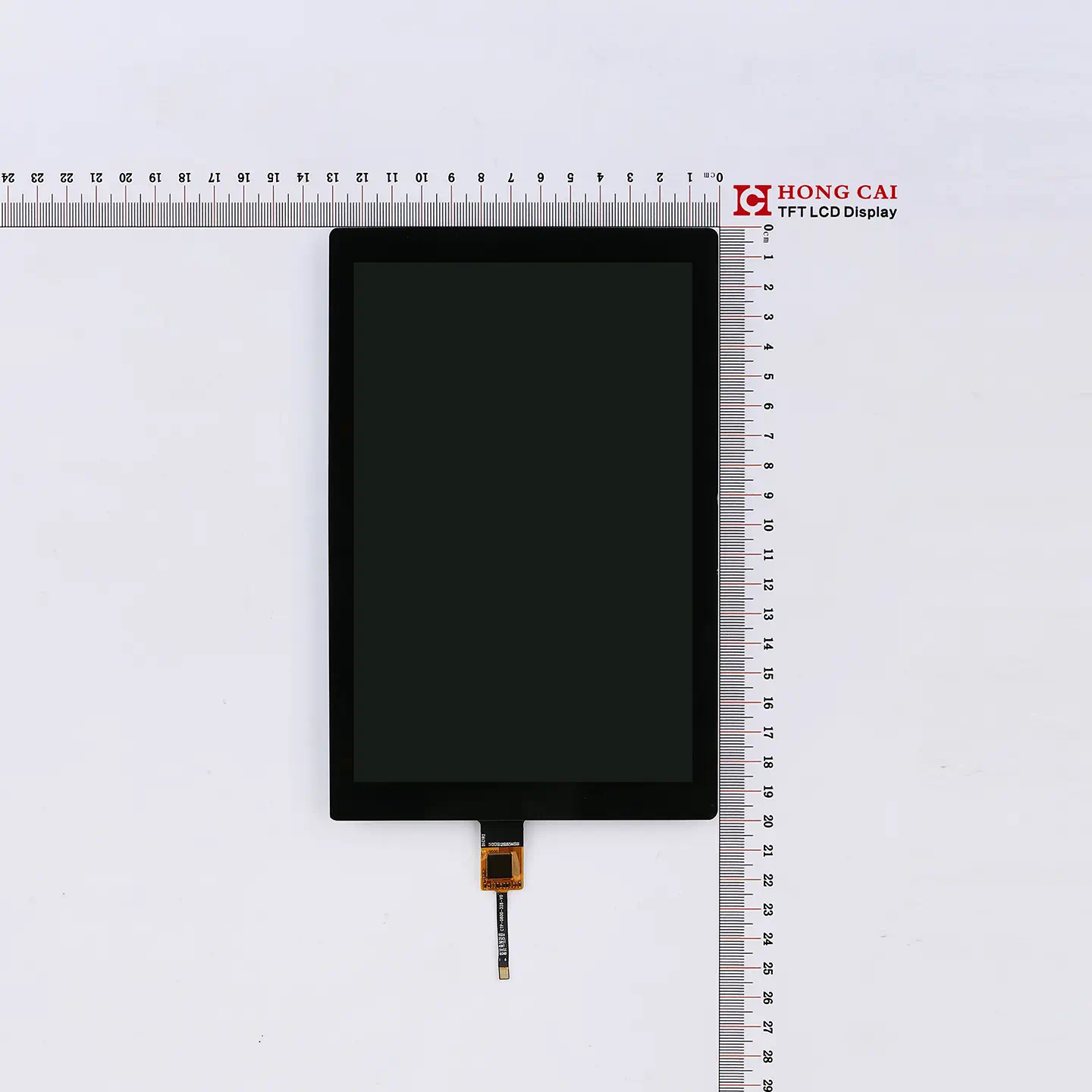

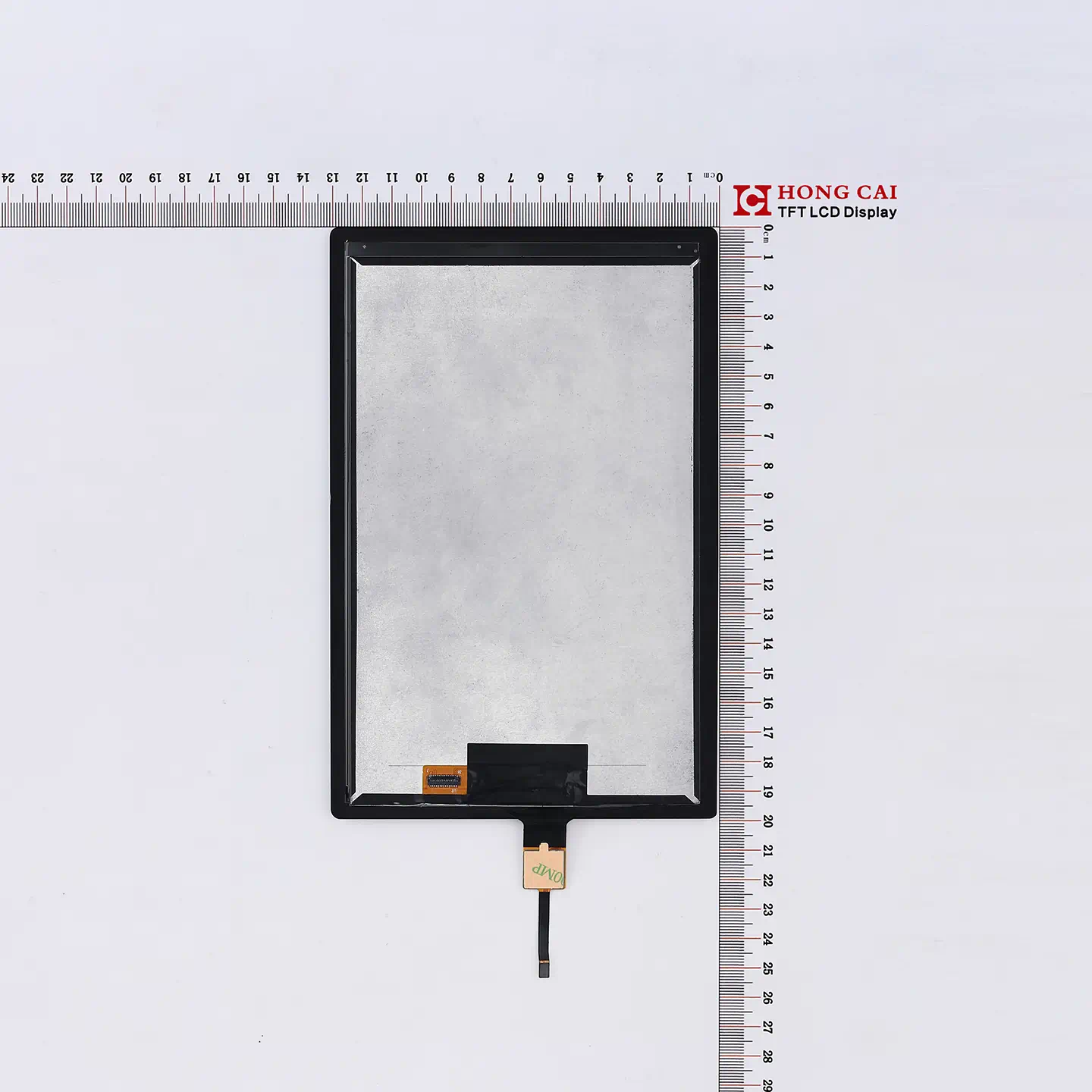

10.1 inch 1024×600 IPS LCD
10.1 inch LVDS LCD Display Screen features a resolution of 1024 x 600 pixels, a high brightness of 450 cd/m², and a wide viewing angle with IPS technology. The touchscreen is a standard size, eliminating the need for custom development. The touchscreen can be either resistive or capacitive. The backlight power supply can be supplied independently using a terminal block or soldered to the main display FPC.
| Item | Contents | Unit |
| Size | 10.1 | inch |
| LCM Dimension | 235(W) ×143(H) ×4.5(D) | mm |
| LCD Active Area | 222.72(W) ×125.28(H) | mm |
| Number Of Dots | 1024 × (RGB) × 600 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | ALL | |
| Driver IC | HX8282A11+HX8696A01 | |
| Interface Type | LVDS | |
| Operating Temperature | -20℃~ 70℃ | |
| Storage Temperature | -30℃~ 80℃ |

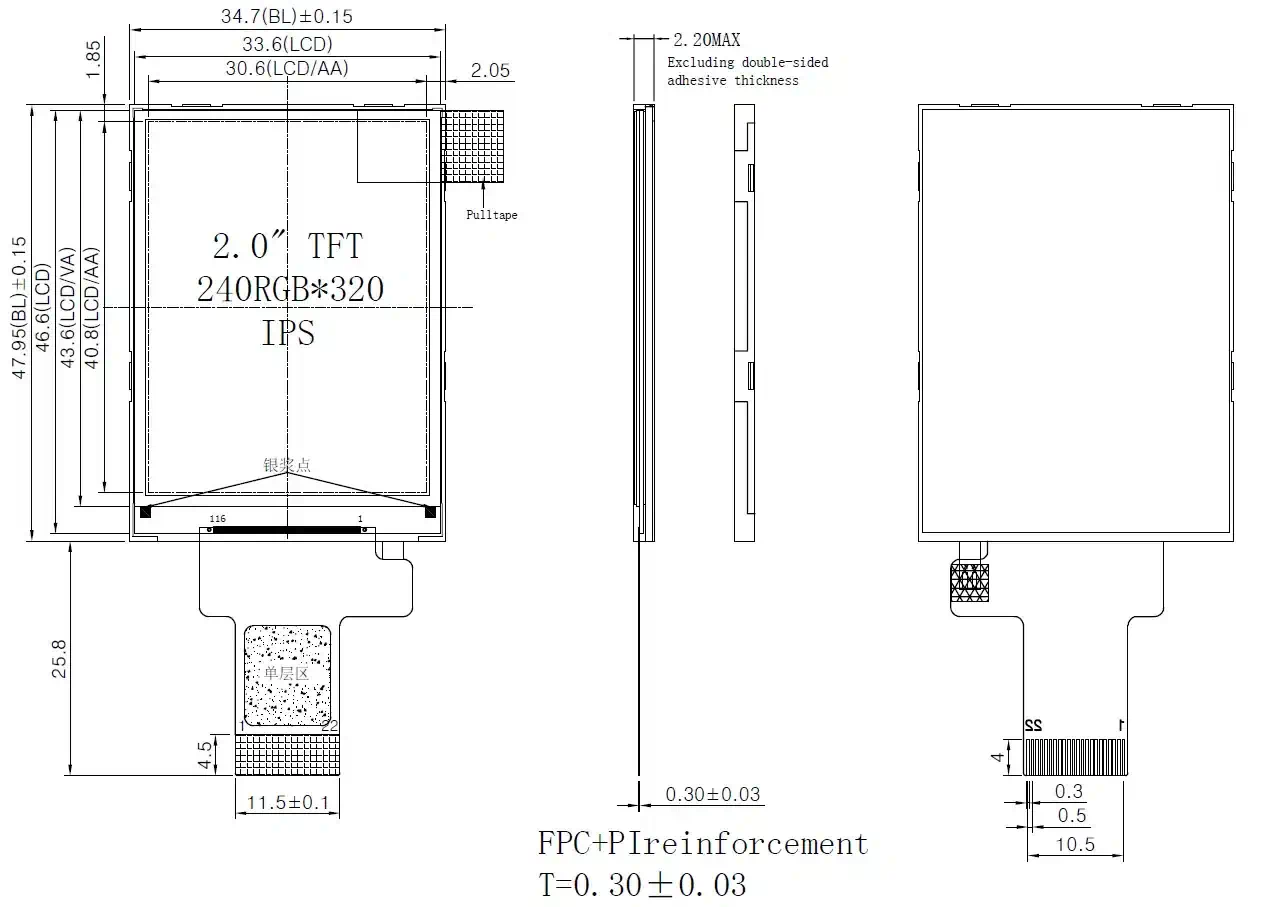

Drawing
Interface
| NO. | Symbol | Description |
| 1 | CTP_RST | TP Reset pin for |
| 2 | CTP_SDA | LCD/CTP SPI data input |
| 3 | CTP_SCL | LCD/CTP SPI clock |
| 4 | CTP_EINT | TP Communication interrupt for |
| 5 | GND | Ground |
| 6 | CTP_VCC | POWER SUPPLY |
| 7 | LEDK | BACKLIGHT CATHODE |
| 8 | LEDA | BACKLIGHT ANODE |
| 9 | NC | NC |
| 10 | GND | Ground |
| 11 | CLKP | MIPI-DSI CLOCK differential signal input pin |
| 12 | CLKN | MIPI-DSI CLOCK differential signal input pin |
| 13 | GND | Ground |
| 14 | D0P | MIPI-DSI Data differential signal input pins. (Data lane 0) |
| 15 | D0N | MIPI-DSI Data differential signal input pins. (Data lane 0) |
| 16 | GND | Ground |
| 17 | D1P | MIPI-DSI Data differential signal input pins. (Data lane 1) |
| 18 | D1N | MIPI-DSI Data differential signal input pins. (Data lane 1) |
| 19 | GND | Ground |
| 20 | LCM_RST | Reset pin |
| twenty one | DSI_TE | Serves TE (Tearing Effect) pin on MPU interface |
| twenty two | VDDIO1.8V | I/O POWER SUPPLY |
| twenty three | VDDIO2.8V | POWER SUPPLY |
| 24-25 | GND | Ground |
