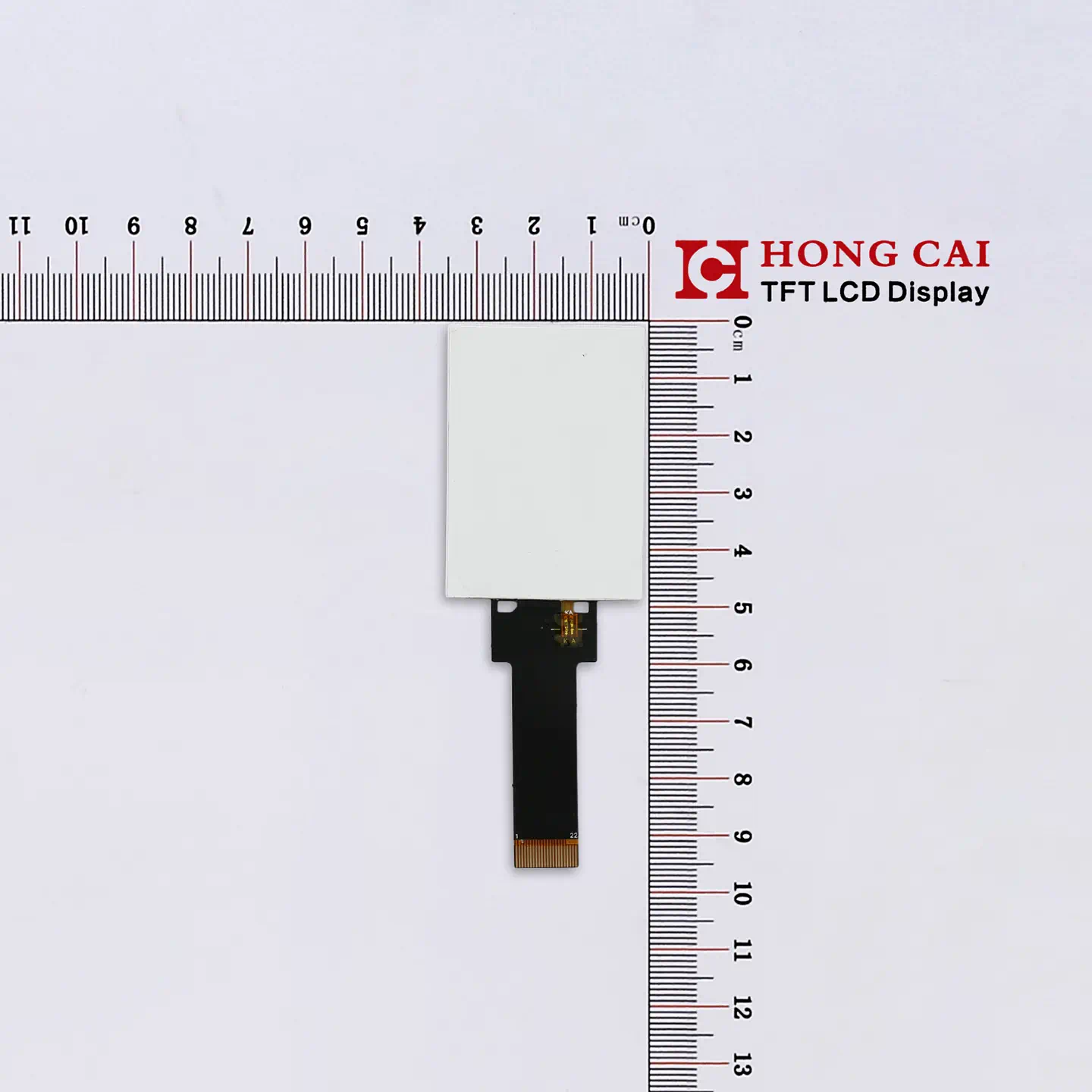

LCD Description
This high-quality IPS LCD Display is a 2.0-inch RGB TFT LCD module engineered for high-performance imaging in compact smart devices and industrial equipment. Featuring a crisp 240×320 dots resolution, this screen delivers vibrant visuals and sharp text, ensuring an exceptional user interface experience.
All-Direction Full Viewing Angle: Unlike standard TN screens that suffer from color inversion, this module features an ALL-viewing angle (IPS-like performance). It ensures consistent color accuracy and contrast whether viewed from the top, bottom, or sides.
Integrated Capacitive Touch Panel (CTP): Equipped with a responsive capacitive touch screen, this display supports modern multi-touch gestures, providing an intuitive and smooth interactive experience for end-users.
As a professional LCD manufacturer, we provide reliable quality, stable long-term supply, and custom FPC/touch panel modifications to fit your specific project requirements.
| Item | Contents | Unit |
| Size | 2 | inch |
| LCM Dimension | 34.70（W）* 47.95（H） * 2.2(T) | mm |
| LCD Active Area | 30.60x 40.80 | mm |
| Number OfDots | 240×320 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | ALL O’clock | |
| Driver IC | ST7789V | |
| Interface Type | RGB | |
| Operating Temperature | -20℃~ 70℃ | |
| Storage Temperature | -30℃~ 80℃ | |
| Backlight | 350 cd/m² | |
| Touchscreen | TBD |

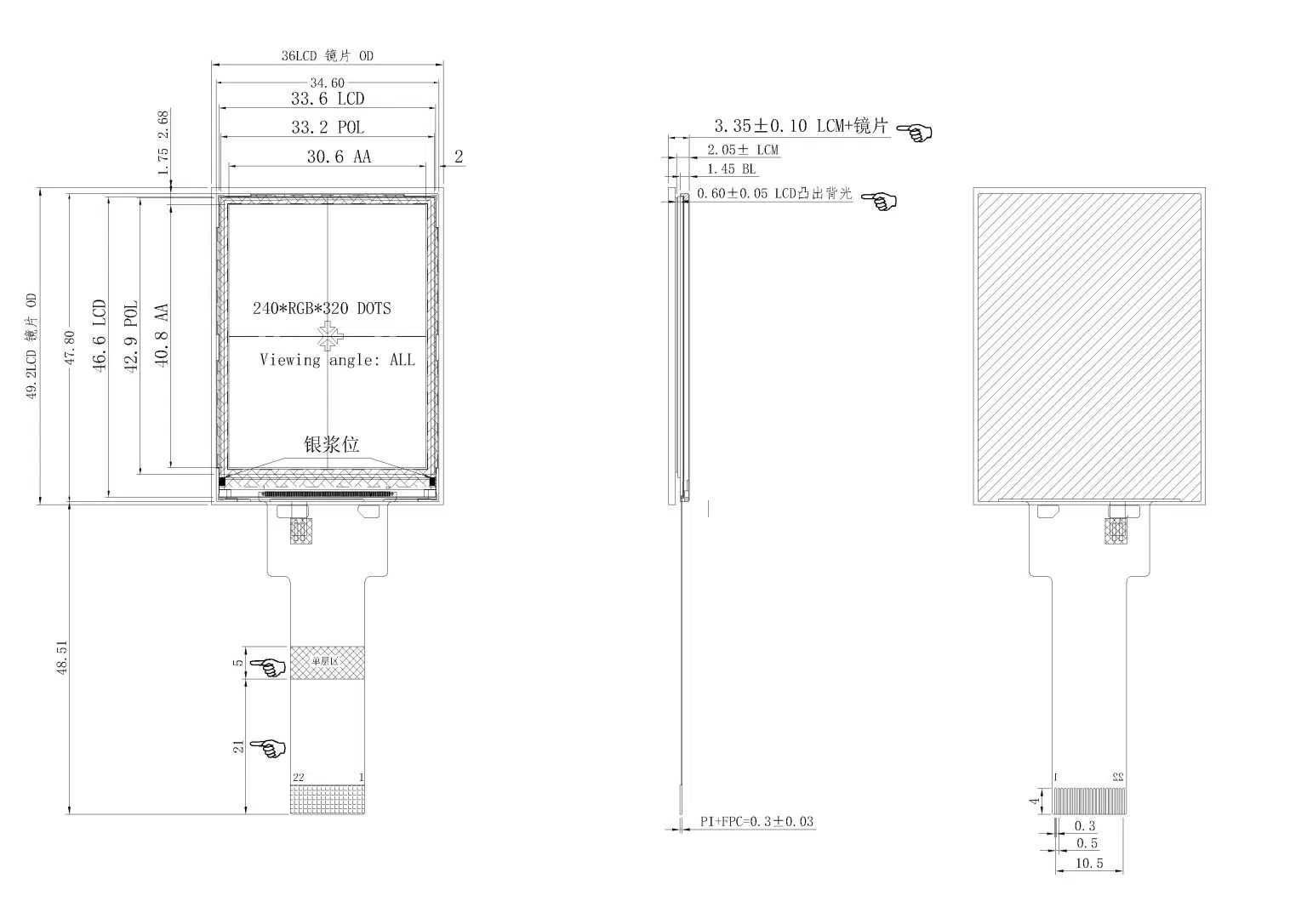

Drawing
RGB Interface
| NO. | Symbol | Description |
| 1 | VDD | Power supply. |
| 2 | GND | Power supply Ground. |
| 3 | RESET | Reset signal, keep Low for more than 10ms after power-on. |
| 4 | CS | Chip enable, Low-active. |
| 5 | SCL | Serial Clock |
| 6 | VS | Frame Synchronizing Signal |
| 7 | HS | Line Synchronizing Signal |
| 8 | DE | Data Enable Signal |
| 9 | DCLK | Dot Clock Signa |
| 10 | SDA | Serial Data Input |
| 11 | K | Backlight cathode. |
| 12 | A | Backlight anode. |
| 13-18 | DB0-DB5 | Data Bus |
| 19-22 | NC | NC |
