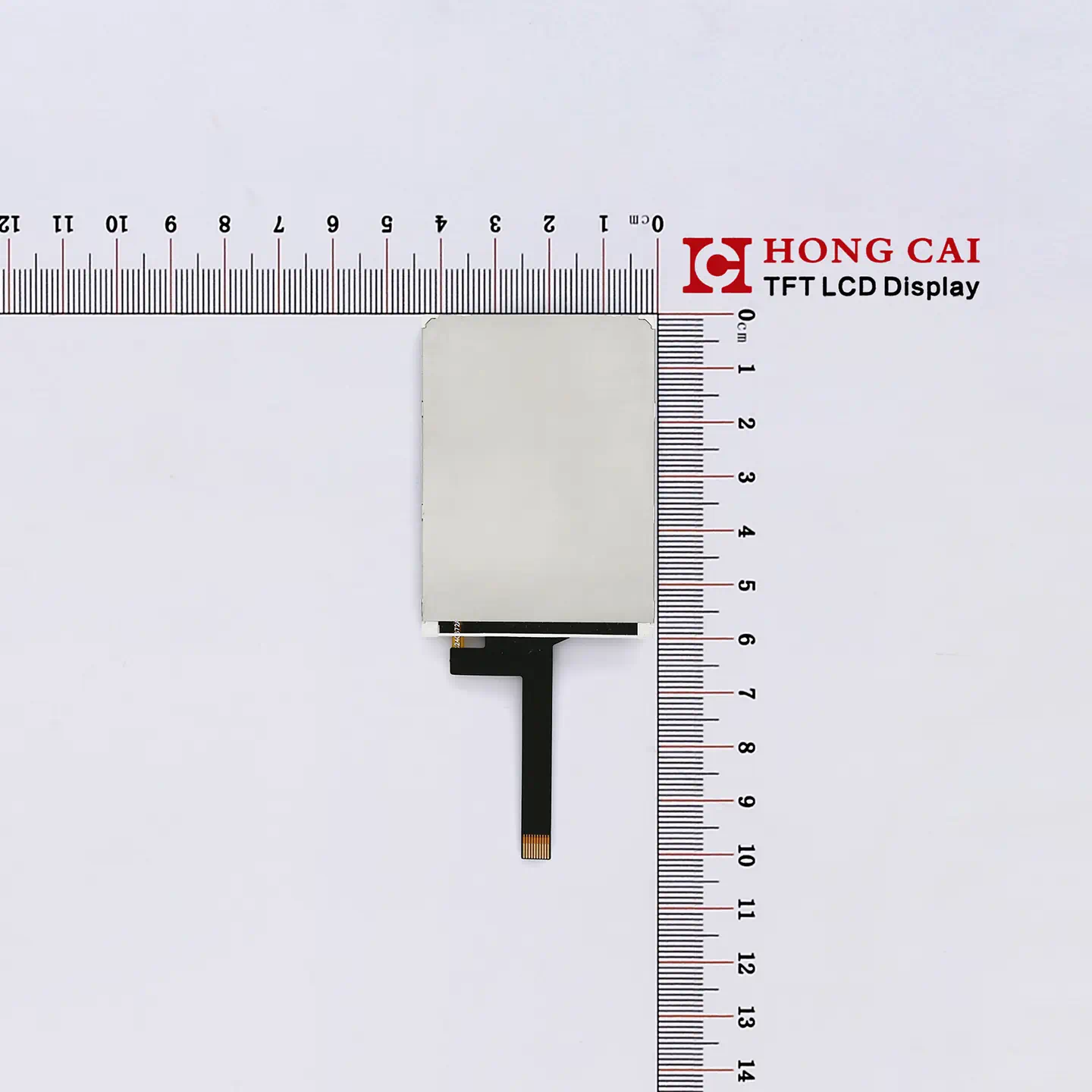

LCD Description
This premium 2.4 inch SPI TFT LCD display is engineered to deliver exceptional visual clarity and reliable performance for space-constrained embedded systems. Featuring a sharp 240×320 dots resolution and cutting-edge IPS full viewing angle technology, this compact color screen ensures vibrant graphics and consistent color accuracy from any perspective, even in well-lit environments with its solid 420 cd/m² backlight brightness.
As a high-performance SPI TFT LCD Display 2.4 inch module, this product delivers exceptional reliability for professional engineers. When deploying this SPI TFT LCD Display 2.4 inch screen, ensure the logic voltage complies with the ST7789V driver specifications to achieve optimal frame rates.
| Item | Contents | Unit |
| Size | 2.4 | inch |
| LCM Dimension | 42.72（W）* 60.26（H） * 2.30(T) | mm |
| LCD Active Area | 36.72 × 48.96 | mm |
| Number Of Dots | 240×320 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | IPS | |
| Driver IC | ST7789 | |
| Interface Type | SPI | |
| Operating Temperature | -20℃~ 70℃ | |
| Storage Temperature | -30℃~ 80℃ | |
| Backlight | 320 | cd/m² |
| Touchscreen | TBD |

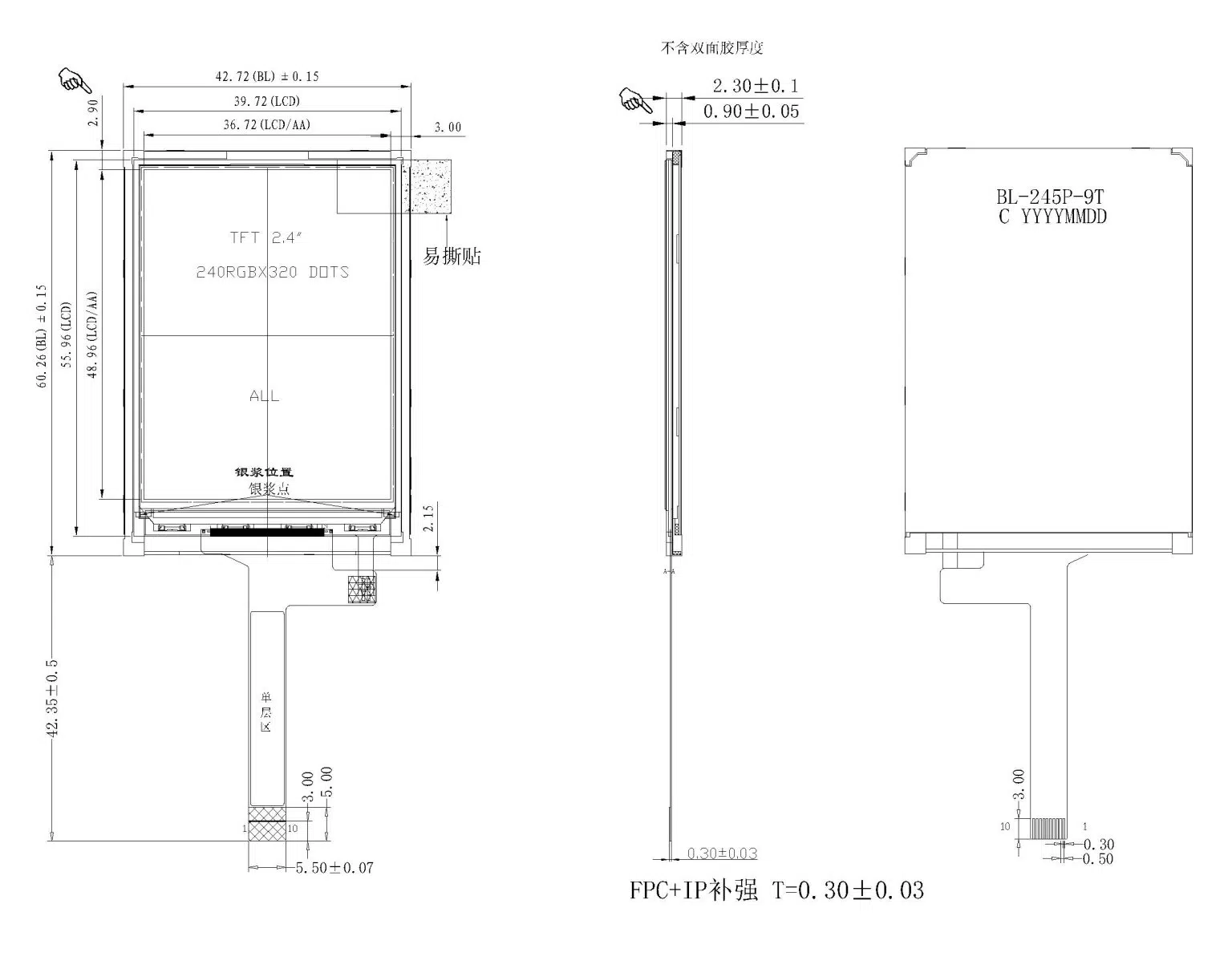

Drawing
SPI Interface
| NO. | Symbol | Description |
| 1 | GND | Ground |
| 2 | SPI_RS | Destination register selection. |
| 3 | /CS | Chip Select |
| 4 | SCL | Serial Clock |
| 5 | SDA | Serial Data Input |
| 6 | /RESET | Reset pin |
| 7 | VCC | POWER SUPPLY |
| 8 | GND | Ground |
| 9 | LEDA | BACKLIGHT ANODE |
| 10 | LEDK | BACKLIGHT CATHODE |
