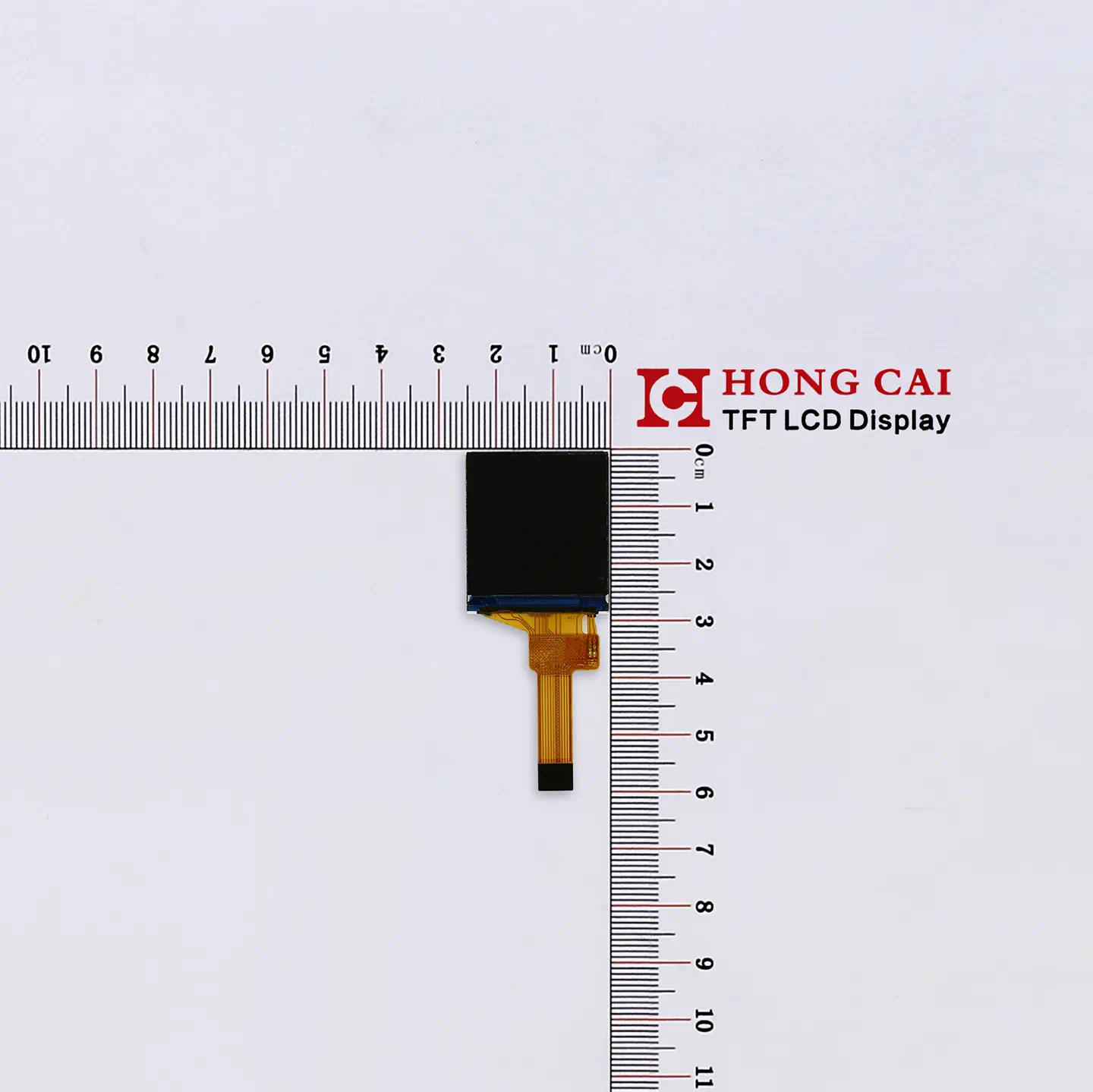

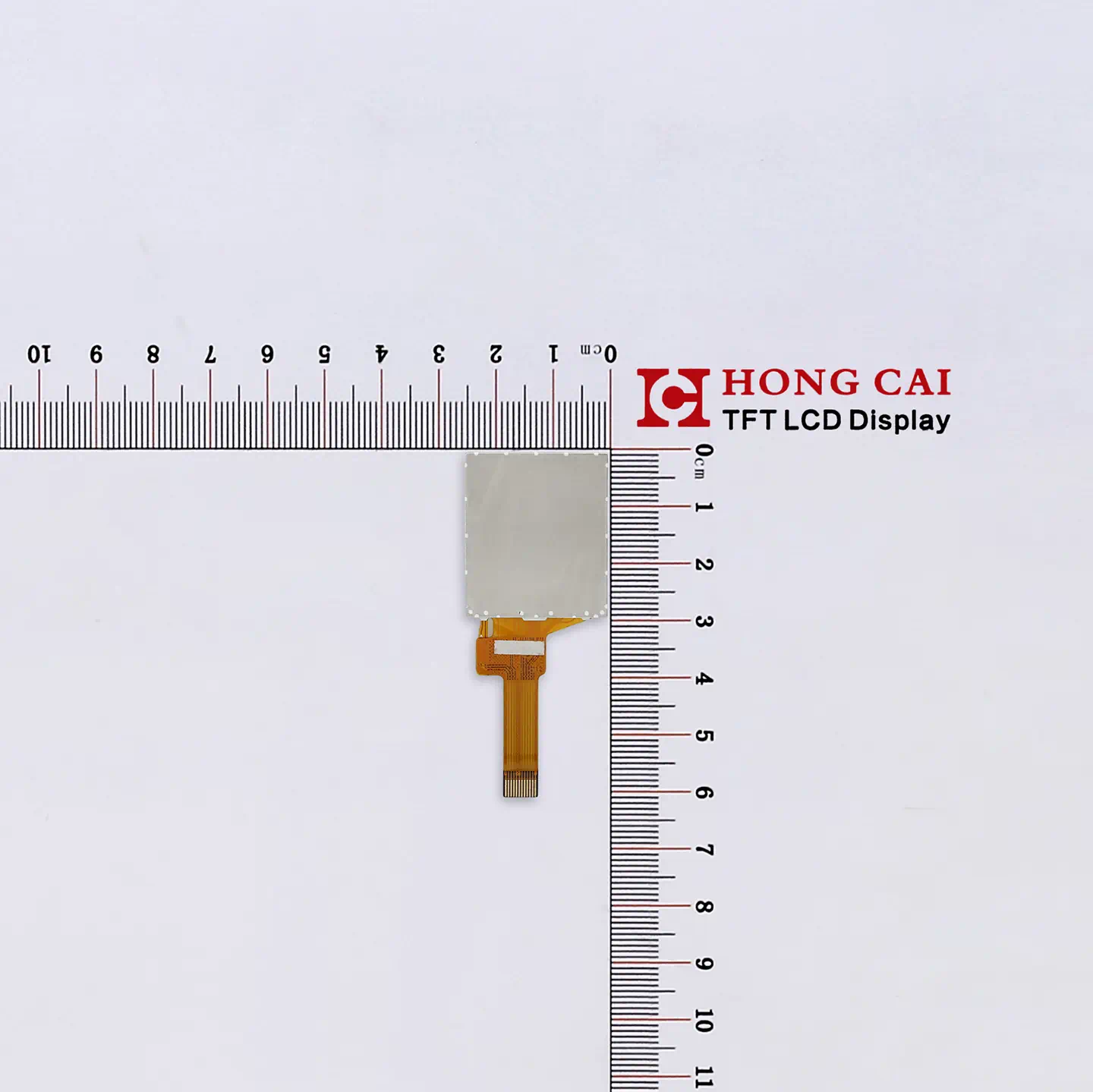

LCD Description
This small lcd screen 1.3 inch is a high-performance, compact display solution designed for precision and clarity. Featuring a Square LCD IPS screen 240×240, it delivers vibrant colors and wide viewing angles (IPS), making it perfect for modern handheld devices, wearable applications, and industrial interfaces.
Engineered with a slim 2.0mm profile and the industry-standard ST7789V driver IC, this module offers easy integration via a high-speed SPI interface. Whether you are developing smart wearables, medical monitors, or compact IoT sensors, this 1.3″ small lcd screen provides the exceptional reliability and visual impact your project requires.
As a leading LCD Display Factory, we provide full customization for this 1.3-inch module, including FPC cable design, backlight intensity, and Touch Panel (CTP/RTP) integration. If you need a different form factor.
| Item | Contents | Unit |
| Size | 1.3 | inch |
| LCM Dimension | 26.20（W）* 29.22（H） *2.0(T) | mm |
| LCD Active Area | 23.40* 23.40 | mm |
| Number Of Dots | 240×240 | pixel |
| LCD Type | a-Si TFT | |
| Viewing Direction | IPS | |
| Driver IC | ST7789V | |
| Interface Type | SPI | |
| Operating Temperature | -20℃~ 70℃ | |
| Storage Temperature | -30℃~ 80℃ | |
| Backlight Type | 2 LEDs | |
| Brightness | 320 | cd/m² |

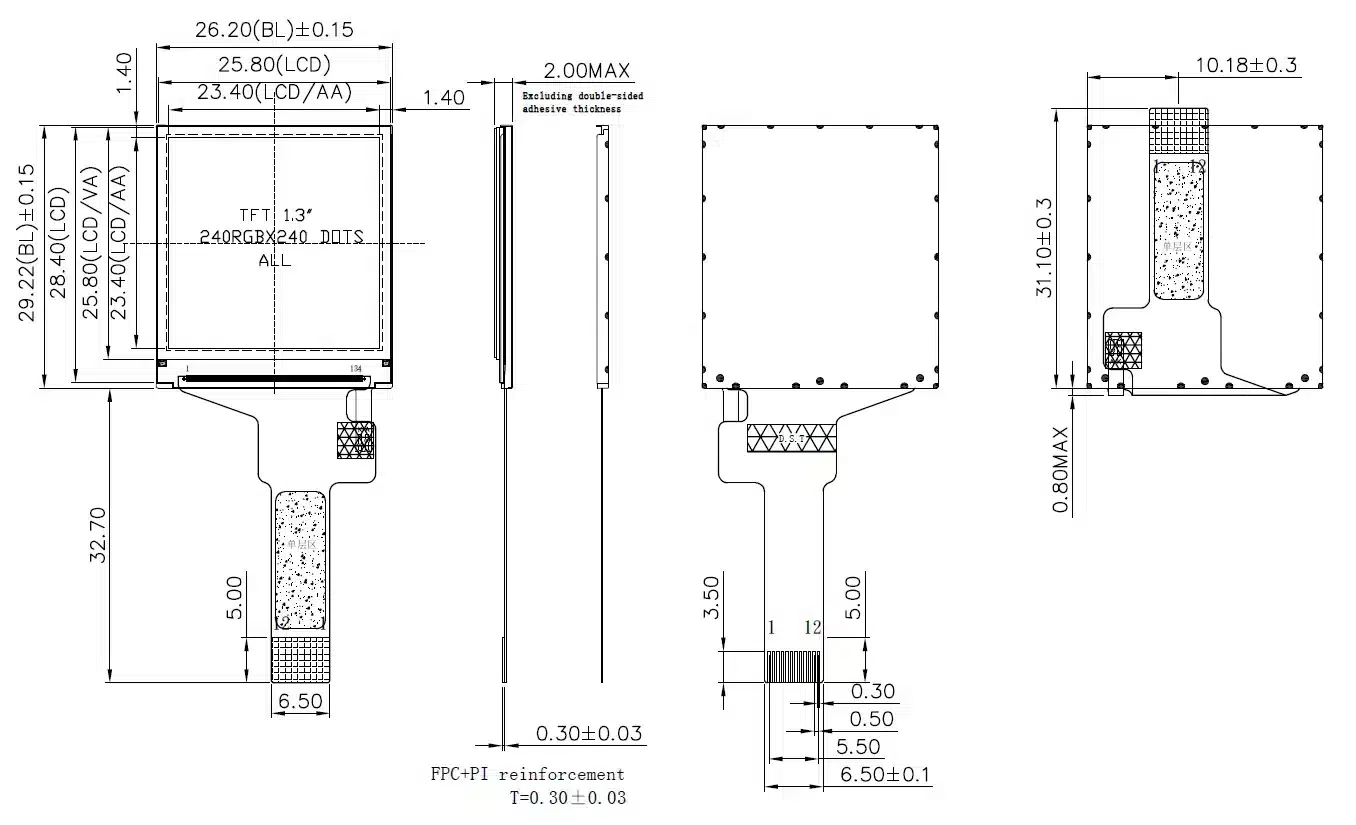

Drawing
SPI Interface
| NO. | Symbol | Description |
| 1 | GND | Ground |
| 2 | LEDK | Backlight cathode. |
| 3 | LEDA | Backlight anode. |
| 4 | VDD | POWER SUPPLY |
| 5 | GND | Ground |
| 6 | GND | Ground |
| 7 | D/C | Destination register selection. |
| 8 | CS | Chip Select |
| 9 | SCL | Serial Clock |
| 10 | SDA | Serial Data Input |
| 11 | RESET | Reset pin |
| 12 | TE | Frame mark. |
